0.5mL/min DC 5V/6V Micro Peristaltic Pump
from
$43.38
Ex Tax: $43.38
- Stock: In Stock
- Model: RDDLZ-PP-MPP05
- Weight: 1.00
- SKU: RDDLZ-PP-MPP05
Note: This micro peristaltic pump is currently out of stock, but we have other items with similar specifications. Please go the page https://www.ato.com/6v-low-flow-peristaltic-pump.
Micro peristaltic dosing pump works at DC 5V/6V power supply, flow rate 0.3~0.5mL/min (0.19GPD), 2-tubing with 1mm diameter. Miniature peristaltic metering pump size is only 10.5*10.5*28mm, used for NPWT, sphygmomanometer, medical ventilator, dental flusher, coffee machine, dishwasher, water dispenser, car air purifier, etc.
Specification
| Model | RDDLZ-PP-MPP05 | |
| Water Flow Rate | mL/min | 0.3~0.5 |
| GPD (gallon/day) | 0.11~0.19 | |
| Rated Voltage | DC 5V, 6V | |
| Power | ＜1W | |
| Tubing Size | Outer Diameter | 2mm |
| Inner Diameter | 1mm | |
| Overall Size | 10.5*10.5*28mm | |
| Weight | 4g | |
| Rated Life | ＞100h | |

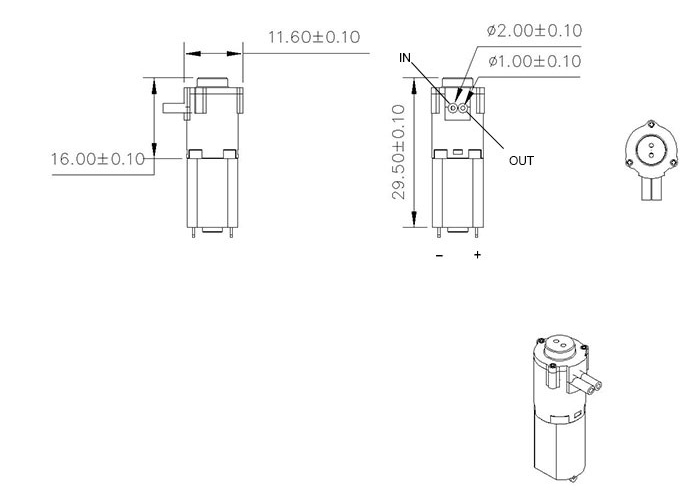

0.5mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)
Micro Peristaltic Pump Applications
Tips: Superiority of micro peristaltic pump.
- No pollution. The fluid only touches the pump tubing, not the pump body.
- High precision. Repeatability, good stability and high precision.
- Low shear force. Micro peristaltic pump is an ideal tool for conveying shear-sensitive and aggressive fluids.
- Good airtightness. Micro peristaltic pump has good self-suck ability and can be idling to prevent liquid backflow.
- Simple maintenance. Micro peristaltic pump has no valves and seals.
- Micro peristaltic pump has the same flow capacity in both directions. In the case of no-liquid load operation, it will not cause damage to any parts of the pump. Micro peristaltic pump can generate up to 98% vacuum. Micro peristaltic pump can easily transport liquid or gas-liquid mixed phase fluids. Only the hose is the component that needs to be replaced, and the replacement operation is extremely simple.
