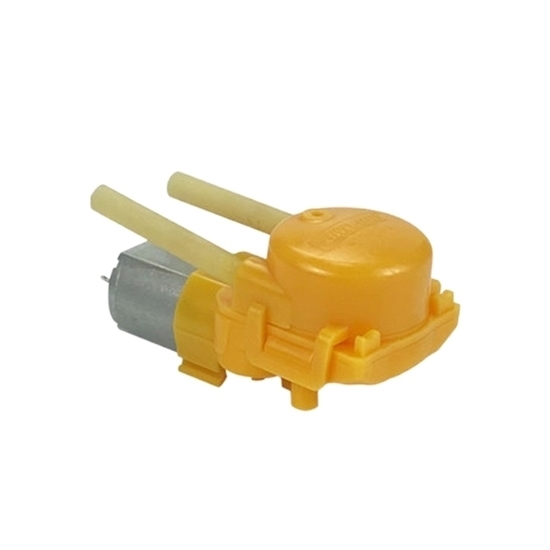

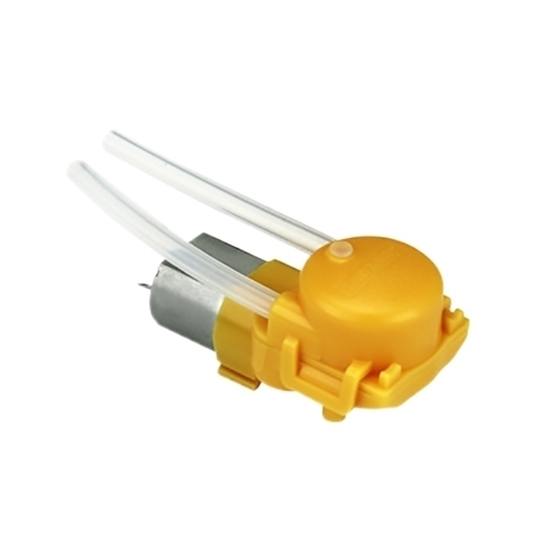

12V High Precision Peristaltic Pump, 11 ML/min Flow Rate

0 reviews • Write a review

from

$71.54

Ex Tax: $71.54

Stock: In Stock
Model: RDDLZ-PP-WX1ZL
Weight: 1.00
SKU: RDDLZ-PP-WX1ZL

Available Options

Flow Rate

Textarea

Voltage RPM

Tube Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12V high precision peristaltic pump price is reasonable. Tube inlet and outlet directions can be adjusted according to user's applications (can be rotated 180°). 12V peristaltic pump applys in kitchen appliances, such as smart toilet lid.

Features:

Tube inlet and outlet directions can be adjusted according to your applications (can be rotated 180 °).
Fine workmanship, compact and compact structure of high precision peristaltic pump.
Light weight, only 41g.
Low noise, suitable for supporting small household appliances.
3-roller low pulse design, suitable for micro dosing.
12V peristaltic pump with high-speed micromotors suitable for interval operation.
The back of the pump body is designed with mounting holes, which can be directly fixed on your equipment.

Specification:

Model: RDDLZ-WX1/ZL
Rated Power: DC 6V, 12V
Power: ≤4W
Voltage RPM: 116 rpm
Tube Type: Silicone, BPT
Flow Rate: 13-26 mL/min, 12-23 mL/min, 11-28 mL/min, 10.5-28 mL/min
Net Weight: 41g
Noise: ≤55 dB
Outlet Pressure: ≤0.1 MPa
Operating Environment: Temperature 0-60 ℃, relative humidity less than 85%

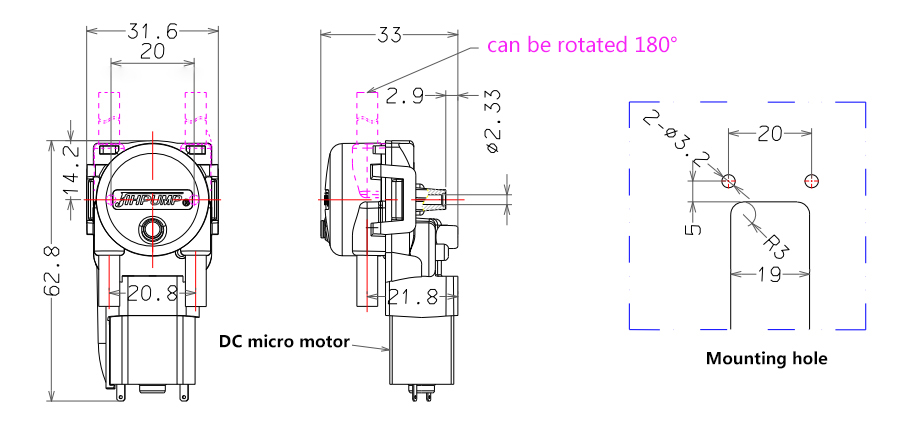

Dimension (Unit: mm)

Application:

Tips: Types of Peristaltic pump

Peristaltic pump is used to obtain the required flow, so according to the operation and use of peristaltic pump, it is divided into:

Speed-regulating peristaltic pump. With basic control functions of peristaltic pump, display speed, start and stop, direction, speed adjustment, filling and empting, power off memory, external control input and other functions.
Flow type peristaltic pump. In addition to the basic function, increase the flow display, flow correction, communication and other functions.
Distribution peristaltic pump. In addition to the basic control function, increase the flow display, flow correction, communication, liquid distribution, suction, output control and other functions.
Customized (OEM) peristaltic pump. With a series of different flow range of peristaltic pump head, customers can according to their own equipment needs, design different peristaltic pump drive circuit supporting use.
