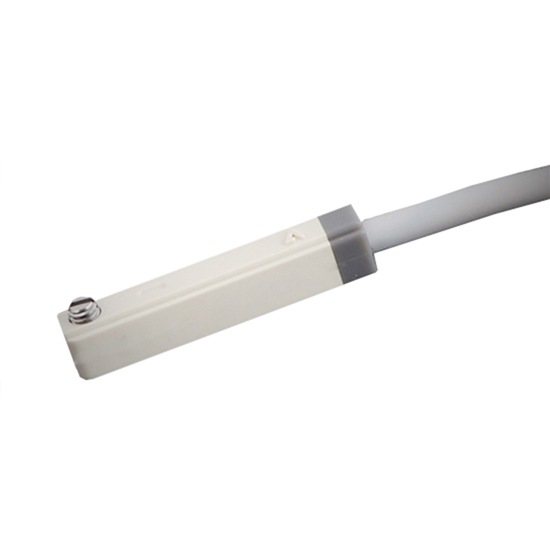

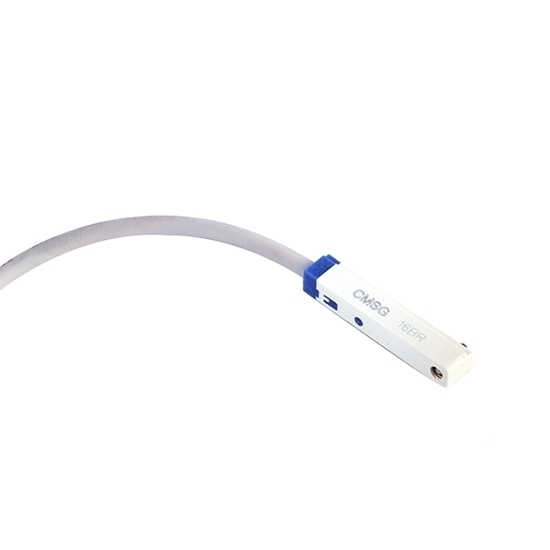

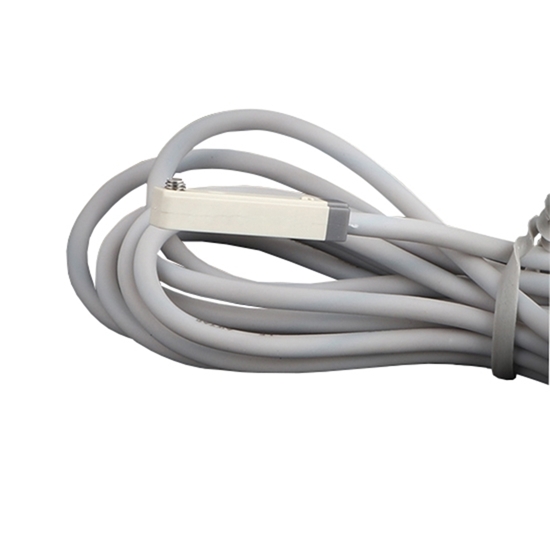

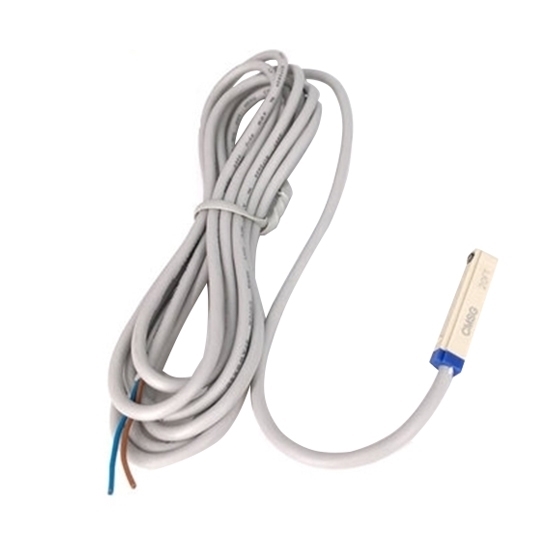

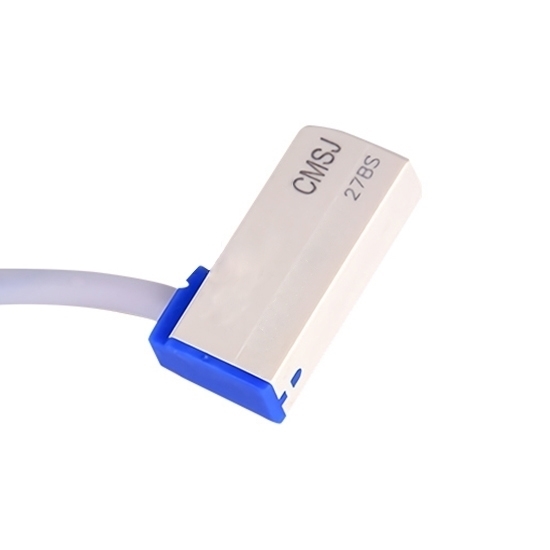

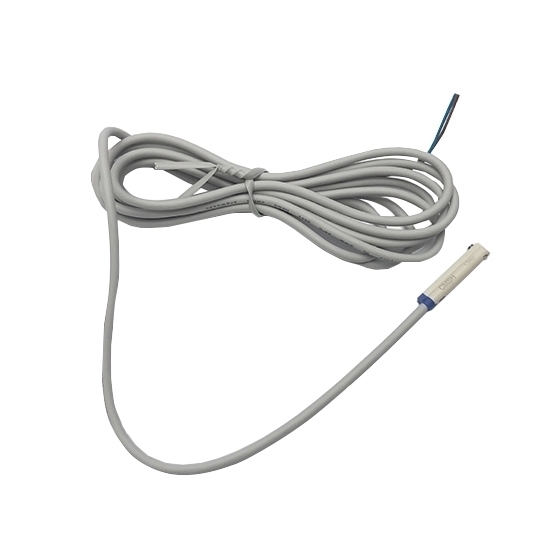

The  3-wire-PNP cylinder sensor is mainly used to detect the position of the piston in the cylinder, and the user can directly install it in the cylinder to use. As a detection device, the sensor is the primary link to realize automatic control and  detection, and it can meet the various requirements of users for equipment information transmission, processing, storage, recording, display and control. Note: our minimum cart qty is 3.

Specification

Selection table

Dimension (Unit=mm)

Connection method

Tips: Possible causes of magnetic switch failure

The  3-wire-PNP magnetic sensor is fixed in the groove on the outer wall of the cylinder. There is a magnetic ring on the cylinder piston that moves with the piston. When the piston moves near the magnetic switch, the magnetism of the magnet will cause the magnetic switch to send out a signal. The light is only for easy identification.
When the cylinder is working normally, the position of the magnetic switch is fixed at the ends of the two ends of the cylinder, the indicator light will be on at the two points of the piston rod at 0 stroke and full stroke. If the light on the magnetic switch is off, it means the installation position is wrong. After adjusting to the accurate position, it needs to be fixed and the position cannot be changed casually.
If the magnetic switch cannot accurately send out signals, it may be:
1. The magnetic switch does not match the cylinder.
2. The internal coil of the magnetic switch is damaged.
