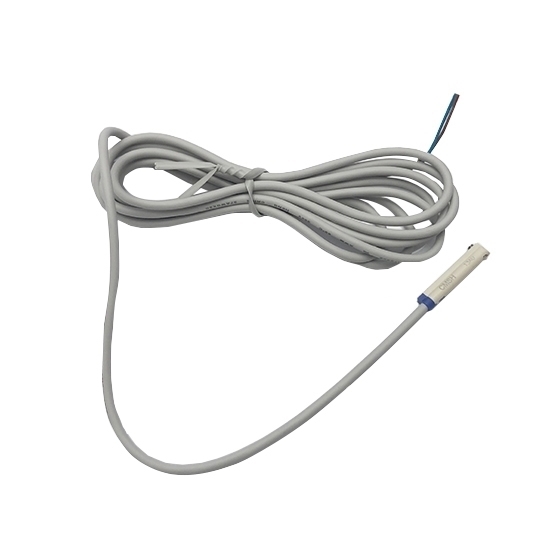

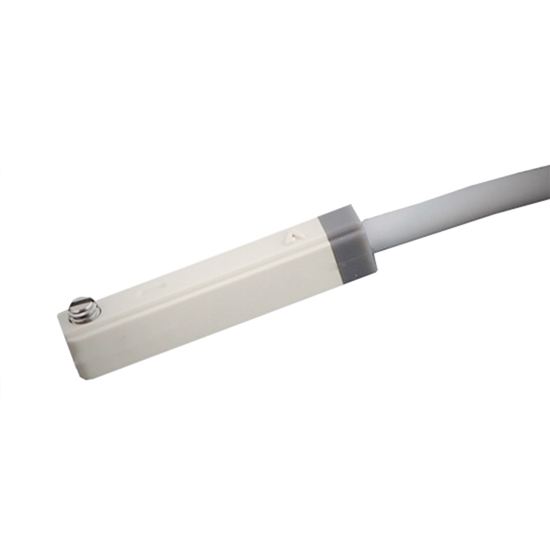

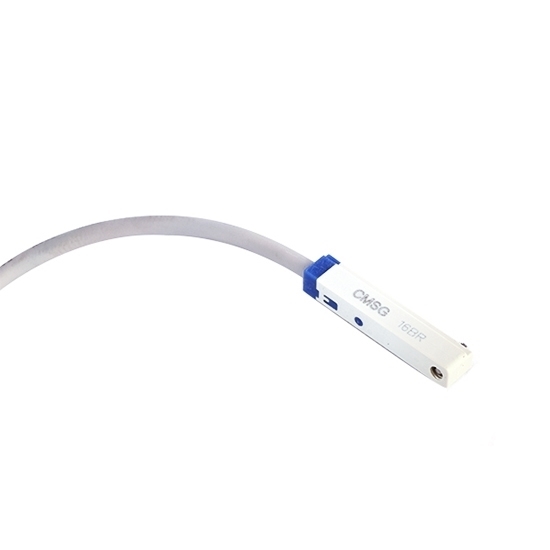

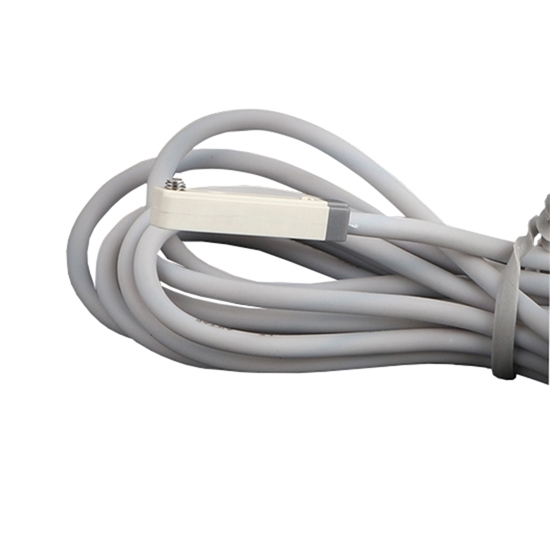

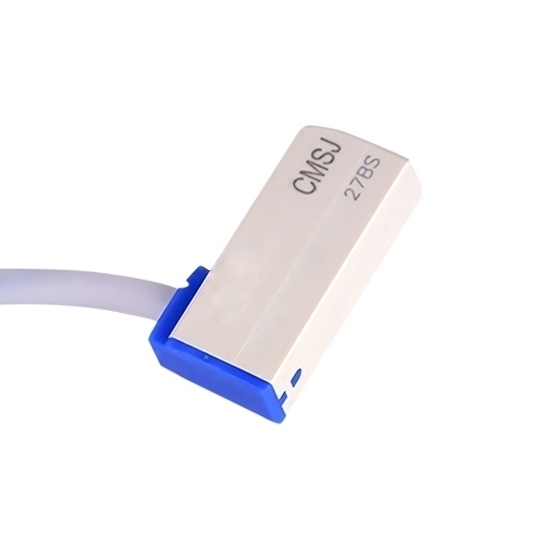

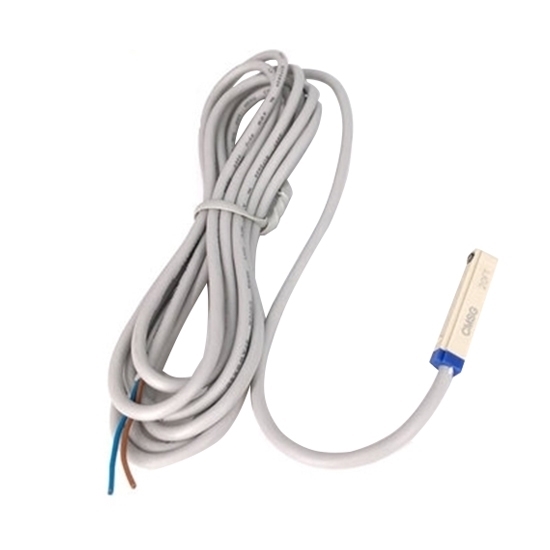

Magnetic Cylinder Sensor, 2-Wire

0 reviews • Write a review

from

$32.35

Ex Tax: $32.35

Stock: In Stock
Model: RDDLZ-MCS-2W
Weight: 1.00
SKU: RDDLZ-MCS-2W

Available Options

Cross Section Type

Protection Level

Lead Wire Length

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The cylinder sensor is mainly used to detect the position of the piston in the cylinder, and the user can directly install it in the cylinder to use. As a detection device, the sensor is the primary link to realize automatic control and detection, and it can meet the various requirements of users for equipment information transmission, processing, storage, recording, display and control. Note: our minimum cart qty is 3.

Specification

Model	RDDLZ-CMS
Item	magnetic cylinder sensor, 2-wire
Voltage	5V-240V AC/DC
Maximum Switching Current	100mA
Maximum Contact Capacity	6W Max
Internal Current Consumption	N/A
Maximum Switching Frequency	200Hz
Impact Resistance	50G
Protection Circuit	N/A
Working Temperature	-10℃~70℃
Standard	CE marking, RoHS

Selection table

Cross Section Types	G, GS, H, HS, E, J
Protection Level	General type-IP64, Waterproof type-IP68
Lead Wire Length	2m, 3m, 5m, 10m

Dimension (Unit=mm)

Connection method

Tips: How does the magnetic switch automatically control the cylinder?
The 2-wire magnetic sensors of the cylinder, it only detects magnetic objects. The piston in the magnetic ring cylinder belongs to the belt. When the piston moves to the position of the reed switch, the magnetic field passes through the cylinder wall to make the switch close, so that the contact is turned on and the signal Pass to the control unit to realize the round-trip action.
