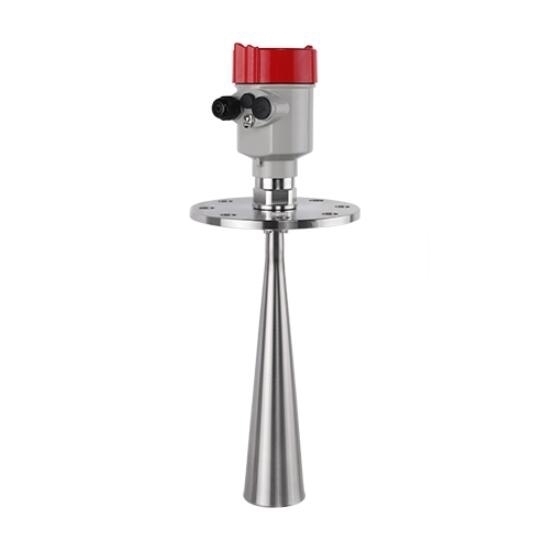

Electronic radar level transmitter for non-contact power, granule, chunk and other solids measurement has maximum measuring range 0-40m, can transmit and output 4-20mA, HART or RS485 signal to remote control system. With protection class up to IP67, it is waterproof and dustproof and can operate in harsh environments.

Specification

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimensions (Unit: mm)

Installation

Wiring

Details

Tips: Comparison between radar level sensor and capacitive level sensor

Radar level sensor adopts non-contact measurement principle, and calculates liquid level by transmitting and receiving high-frequency microwave signals. It has the advantages of high measurement accuracy, strong anti-interference ability, and wide adaptability. It is suitable for complex working conditions such as high temperature, high pressure, and strong corrosion. It is widely used in petrochemical, chemical, pharmaceutical and other industries, and is basically maintenance-free.

Capacitive level sensor uses the principle that the capacitance of the capacitor changes with the liquid level. It determines the liquid level by measuring the change of capacitance value. It has a simple structure and low cost. It is suitable for conductive liquids, but is sensitive to foam and adhesion. It is often used in general application scenarios such as water treatment and small storage tanks, and requires regular maintenance and cleaning.
