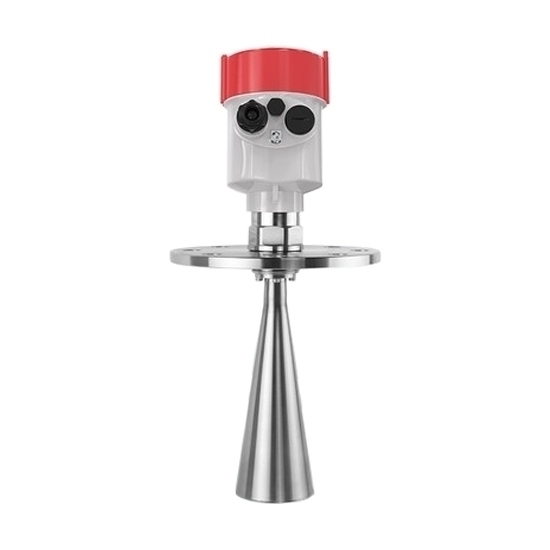

26 GHz Radar Level Transmitter, Non-contact, 4-20mA/RS485, 0-30M

26 GHz Radar Level Transmitter, Non-contact, 4-20mA/RS485, 0-30M
26 GHz Radar Level Transmitter, Non-contact, 4-20mA/RS485, 0-30M
0 reviews • Write a review
from
$1,452.09
Ex Tax: $1,452.09
  • Stock: In Stock
  • Model: RDDLZ-LEVS-RD902
  • Weight: 1.00
  • SKU: RDDLZ-LEVS-RD902

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ultrasonic radar level sensor for non-contact various slightly corrosive liquid level measurement has maximum measuring range 0-30m, can transmit and output 4-20mA, HART or RS485 signal to remote control system. It has an IP67 protection rating and is dust and water resistant, making it suitable for outdoor or humid environments.

Specification

ModelRDDLZ-LEVS-RD902
Shipping Weight6.5kg
Measuring Range0-30m
Accuracy±5mm (Range 5m), ±10mm (Range 20m), ±15mm (Range 30m)
Resolution1mm
DisplayLCD Display
Measured Interval1s (according to parameter setting)
Adjustment Time1s (according to parameter setting)
Microwave Frequency26GHz
Output Signal*4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*DC 12-24V, AC 220V/50Hz
MaterialShell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304/ 316L Stainless Steel/ Tetrafluoroethylene
Horn Antenna Size*Φ78mm/ Φ98mm
Pressure-0.1 ~ 0.4MPa
Shock Resistance10m/s2, (10~150)Hz
Communication ProtocolModbus
MediumTemperature Resistant, Pressure Resistant, Slightly Corrosive Liquids
Storage Temperature-40~+100℃
Process connection (antenna) temperature-40~+150℃
Medium Temperature-40~+250℃
Protection ClassIP67
Electrical Connection2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*G1-1/2"A thread, Flange
Warranty12 Months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimensions (Unit: mm)

Installation

Wiring

Details

Tips: Precautions for using non-contact radar level sensors

  • Avoid the feed port to avoid false reflections.
  • The radar level sensor should not be installed in the center of the arched tank (otherwise the false echo received by the sensor will be enhanced), and it should not be installed very close to the tank wall. The best installation position is 1/2 of the radius of the container.
  • According to the technical parameters of the sensor, set a reasonable minimum measurement distance (blind area) to avoid measurement errors caused by excessive liquid level entering the blind area.
  • Although the radar sensor is non-contact, dust accumulation or crystallization may still affect signal transmission, and the antenna surface needs to be checked and cleaned regularly.
