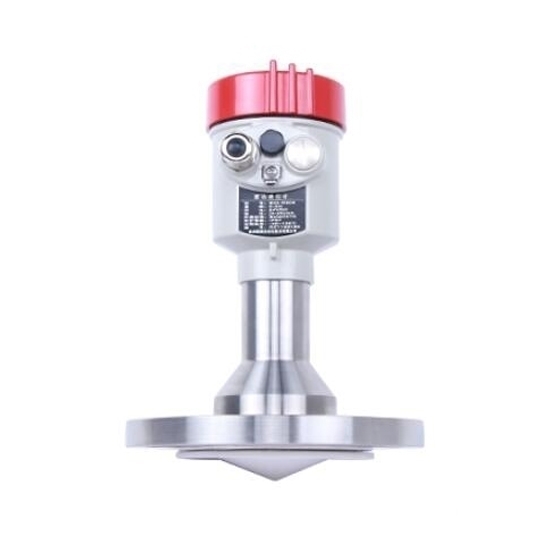

Radar Level Sensor For Corrosive Liquid, Non-contact, 0-20M

0 reviews • Write a review

from

$1,732.89

Ex Tax: $1,732.89

Stock: In Stock
Model: RDDLZ-LEVS-RD906
Weight: 1.00
SKU: RDDLZ-LEVS-RD906

Available Options

Short Description

Power Supply

Output Signal

Flange Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial radar level sensor for non-contact various highly corrosive liquid level measurement has maximum measuring range 0-20m, can transmit and output 4-20mA, HART or RS485 signal to remote control system. This radar liquid level sensor can operate at a medium temperature of -40℃ to +150℃, suitable for level measurement under various temperature conditions.

Specification

Model	RDDLZ-LEVS-RD906
Shipping Weight	7.5kg
Measuring Range	0-20m
Accuracy	±10mm (Range 10m), ±15mm (Range 20m)
Resolution	1mm
Display	LCD Display
Measured Interval	1s (according to parameter setting)
Adjustment Time	1s (according to parameter setting)
Microwave Frequency	26GHz
Output Signal*	4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*	DC 12-24V, AC 220V/50Hz
Material	Shell Aluminum, Process Connection 304 Stainless Steel, Tetrafluoroethylene
Pressure	-0.1 ~ 4.0MPa
Shock Resistance	10m/s², (10~150)Hz
Communication	Protocol Modbus
Medium	Hygienic Liquid Storage Container, Highly Corrosive Liquids
Storage Temperature	-40~+100℃
Process connection (antenna) temperature	-40~+150℃
Medium Temperature	-40~+150℃
Protection Class	IP67
Electrical Connection	2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*	DN50, DN80, DN100, DN125, DN150, DN200 Flange
Warranty	12 Months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimensions (Unit: mm)

Installation

Wiring

Details

Tips: What are the advantages of radar level sensor?

The radar level sensor enables continuous level measurement of liquids, particles and slurries. The measurement of radar level sensor is not affected by medium change, temperature change, inert gas and steam, dust, foam, etc. Radar level transmitter is suitable for use in explosion-hazardous areas.

Compared with traditional level measurement methods such as floats and ultrasonic waves, radar technology is more suitable for complex working conditions, has faster response speed, and requires almost no maintenance. In industrial automation, radar level sensors are often used in conjunction with other equipment to achieve automatic level adjustment and process control. It can also be easily integrated into PLC control systems and DCS systems to improve the operating efficiency and safety of the overall system.
