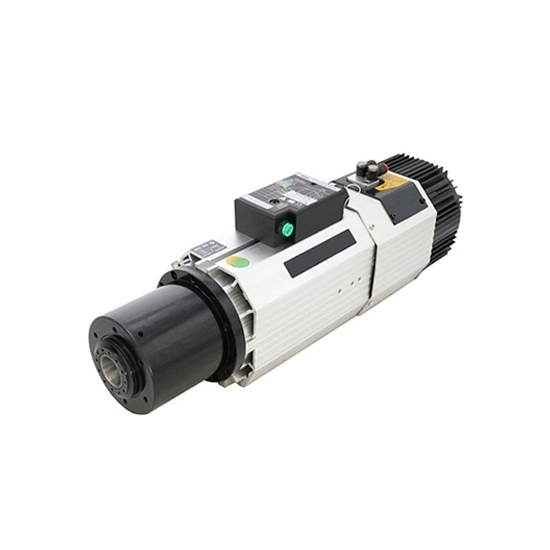

9 KW CNC ATC Spindle, 24000 Rpm

9 KW CNC ATC Spindle, 24000 Rpm
9 KW CNC ATC Spindle, 24000 Rpm
0 reviews • Write a review
from
$2,628.19
Ex Tax: $2,628.19
  • Stock: In Stock
  • Model: RDDLZ-SPINDLE-ATC9000
  • Weight: 1.00
  • SKU: RDDLZ-SPINDLE-ATC9000

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

ISO30 9kW CNC air cooled ATC spindle motor for sale at economical price, 24000 rpm speed, works at 3 phase 380V AC operating voltage, 800 Hz frequency, used for CNC router machine.

Features

  • Reasonable structure design, simple and compact configuration, easy to take apart.
  • High precision, inflexibility and efficiency, long operation life.
  • With high grade size, shape, position precision, and quality of the surface.
  • Enough abrasive resistance, vibration resistance, suitable size.
  • Work stable, low noise, enough fatigue strength.

Specifications

ModelRDDLZ-STL70-24Z-9.0L
Power9000 W
Speed24000 rpm
Voltage380 V
Current18.2 A
Frequency800 Hz
Tool interfaceISO30
Numbers of Poles4
Automation GradeAutomatic
Type of CoolingAir cooling
Type of InsulationF
Protection classIP54
Weight32 KG

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Dimension (Unit: mm)

Details


Tips: Tips For Using a Spindle Motor

  • The spindle motor and the inverter should be used together, and the specifications and parameter settings of the inverter should match the electric spindle.
  • Before use, check whether the air duct is blocked or not. If there is an emergency use, use compressed air to blow it through.
  • It must be ensured that the cooling circulation system is working normally, and it is strictly forbidden to use it under no cooling conditions.
  • The electric spindle should be turned on (low speed) for 15-30 minutes at least within a week during long-term storage, and must be operated at low speed for 15-20 minutes before processing every day.
