1.5 KW CNC ATC Spindle, 60000 Rpm

0 reviews • Write a review

from

$1,752.32

Ex Tax: $1,752.32

Stock: In Stock
Model: RDDLZ-SPINDLE-ATC1500
Weight: 1.00
SKU: RDDLZ-SPINDLE-ATC1500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

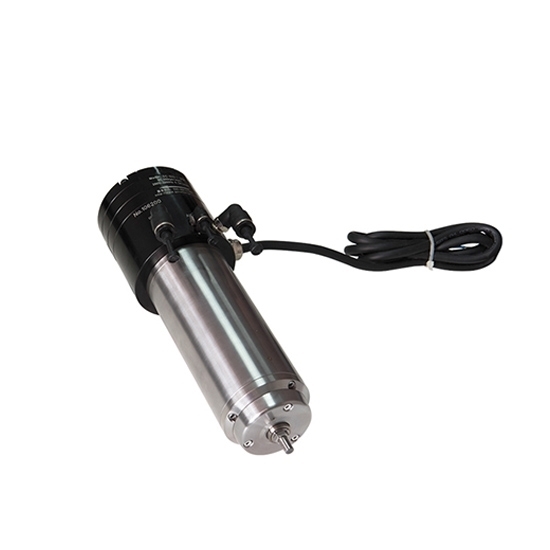

Low cost 1.5 kW water cooled ATC spindle motor, 60000 rpm speed, 0.28 Nm torque, Φ3- Φ6 collet, 1000Hz frequency, 3 phase 220V AC rated voltage, widely used in CNC drilling and milling equipment.

Features

Reasonable structure design, simple and compact configuration, easy to take apart.
High precision, inflexibility and efficiency, long operation life.
With high grade size, shape, position precision, and quality of the surface.
Enough abrasive resistance, vibration resistance, suitable size.
Work stable, low noise, enough fatigue strength.

Specifications

Model	RDDLZ-DC-62F
Motor power	1500 W
Rated voltage	3 Phase 220V AC
Max speed	60000 rpm
Max current	10 A
Max frequency	1000 Hz
Torque	0.28 N·M
Cone at the end of the shaft pulsates	≤0.001 mm
Tooling releasing air pressure	5.6-6.0 Kgf/cm²
Tooling change method	Automatic tool changer
Tooling pulling force	≥1200 N
Tooling back air pressure	No
Tooling connection	Φ3- Φ6 collet
Cooling	Water cooling
Encoder	No
Coolant pressure	≥2.5 Kgf/cm²
Approach switch	No
Bearing lubrication method	Grease
Balance level	G1
Install method	Clamp
Vibration Value	≤0.8 mm/s
Weight	3.9 Kg

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Dimension (Unit: mm)

Details

Tips: Working Principle of the ATC Spindle

The rear part of the main shaft is a cylinder structure. The inside of the cylinder uses air pressure to push the thimble against the middle rod to extend the chuck so that the tool falls off, and then the equipment can use the shaft platform to automatically grab the tool. The solenoid valve at the back of the spindle is used to release the air pressure to clamp the tool. This process is called automatic tool change, or ATC for short.
