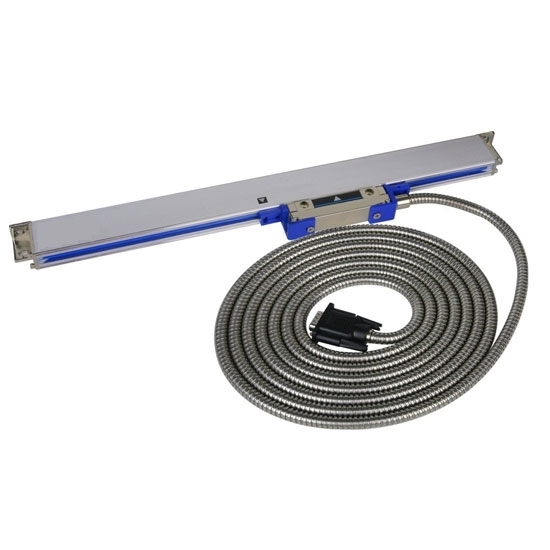

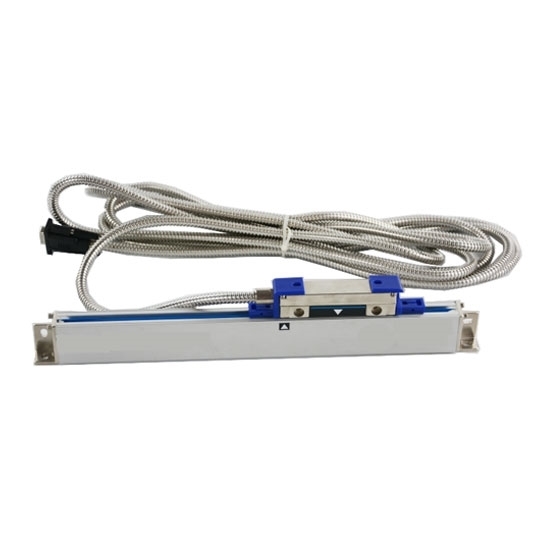

Linear Scale, 300mm/12 Inch, 1000mm/40 Inch Stroke, 5 Micron

0 reviews • Write a review

from

$219.76

Ex Tax: $219.76

Stock: In Stock
Model: RDDLZ-LS-WTA
Weight: 1.00
SKU: RDDLZ-LS-WTA

Available Options

Short Description

Output Signal

Stroke

Micron Resolution

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost Linear encoder resolution can select 0.5µm, 1µm or 5µm, the optional length is 350mm, 500mm and 700mm, signal output TTL or RS422. Widely applied to milling, grinding, lathe and EDM machines.
After purchasing one RDDLZ linear scale, you can buy a digital readout for milling machine, lathes or table saw fence.

Specification

Model	RDDLZ-LS-WTA
Resolution	0.5 µm	1 µm	5 µm
Speed	30m/min	50m/min	90m/min
Effective Movement Length	50-1000mm, (2"-40")
Precision	±（3+3L0/1000) µm (or even higher)
Output Signal	TTL or RS422
Grating Pitch	20 µm
RI	There is an RI every 50mm (1.9")
Nominal Length	When L0=50~1000mm, it is one file every 50mm
	When L0=1000～3000mm, it is one file per 100mm.
Maximum Stroke Within 1000mm	Scale Length: 3.5m (11 feet)
Maximum Stroke Within 1000-1500mm	Scale Length: 5.0m (16 feet)
Maximum Stroke above 1600mm	Scale Length: 10m (32 feet)
Thickness	29mm （1.1"）
IP Rating	54
Working Voltage	5±0.25V
Work Waste	Max, 5V, 40mA
Reserving Temperature	0-50℃
Working Temperature	0-40℃

Dimensions (Unit: mm)

Linear Scale Output Signal

Linear Encoder Plug Types

Tips: Linear scale working principle

Transmission grating, for example, when the indicator on the grating lines and scale on the grating lines formed between a small Angle theta, and two relative of parallel grating ruler facets, in under the irradiation of light source, is located in a nearly vertical grid lines, the formation of light and dark stripes. This stripe is called the moire stripe. Strictly speaking, the direction of the moire fringe is perpendicular to the bisector of the Angle between the two grating lines. The distance between two bright or dark lines in the moire fringe is called the width of the moire fringe, denoted by W:
W is /2 times sine of over 2, which is/over 2.
