5" Electric Wafer Butterfly Valve

0 reviews • Write a review

from

$857.29

Ex Tax: $857.29

Stock: In Stock
Model: RDDLZ-EBV-125WF
Weight: 1.00
SKU: RDDLZ-EBV-125WF

Available Options

Short Description

Power Supply

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

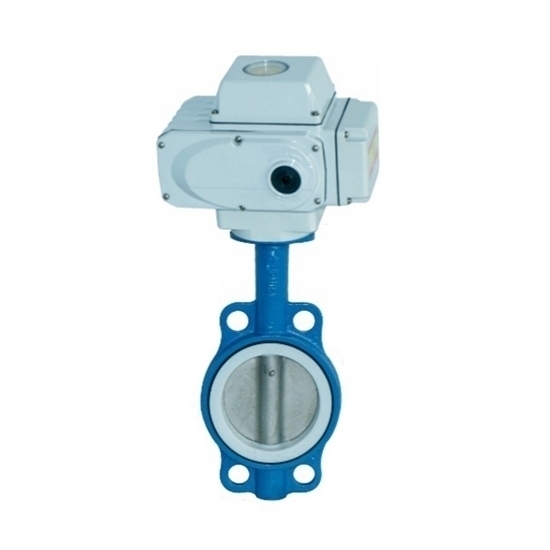

Factory price 5 inch electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-50WF
	Media	Water, Air, Gas, Oil, Liquid, etc.

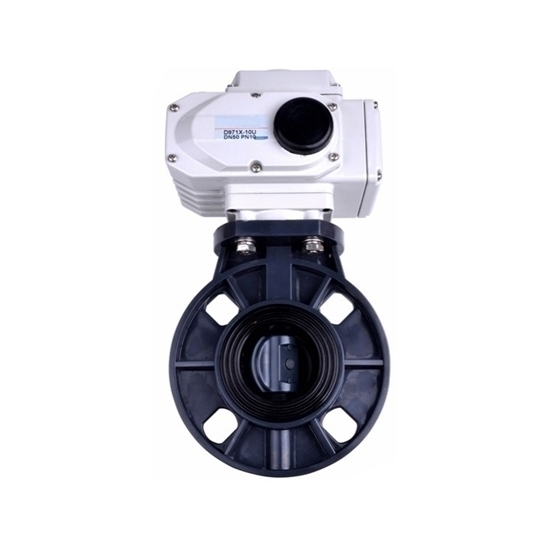

	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	5 inch (DN125, 125mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-10
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
125	54.5	127	370	198	215	184	4-23

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
210	8-19	216	8-19	210	8-18	258	130	164	165	15	64	50	8.5	70	17	360	255

Details

Tips: Reasons for electric actuated wafer butterfly valve leakage

Electric soft sealing butterfly valve (the raw material of butterfly valve is ductile iron with rubber seal)

This kind of electric butterfly valve is often used for opening and closing of non-corrosive water at normal temperature.

Reasons of leakage

The butterfly plate is corroded, due to the ductile iron plate, the valve plate will rust and cause leakage over time.
The rubber valve seat is damaged, the long-term opening and closing, the rubber wear resistance is not good, resulting in the damage of the seal.
The reason for the electric actuator is that the on-site debugging is not in place, resulting in leakage.

Electric hard seal butterfly valve (the raw material of butterfly valve is carbon steel with metal hard seal)

This kind of butterfly valve is used in relatively harsh working conditions, generally high temperature steam, heat transfer oil, etc.

Reasons of leakage

Damage to the sealing surface, caused by high temperature steam cavitation.
The fine and hard particles are washed away for a long time.
The butterfly valve plate has air holes.
