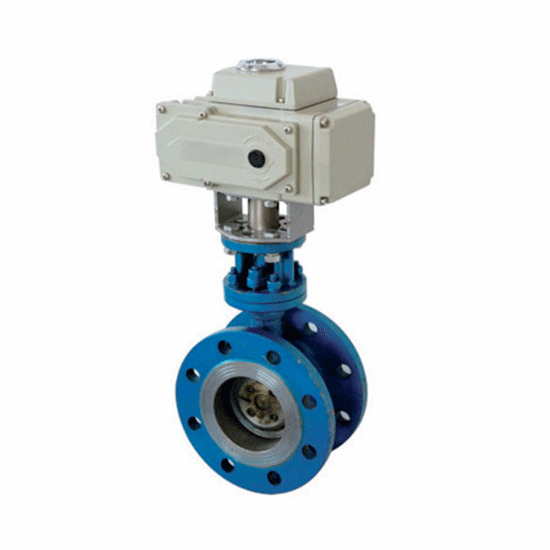

14" Electric Flanged Butterfly Valve

0 reviews • Write a review

from

$3,921.69

Ex Tax: $3,921.69

Stock: In Stock
Model: RDDLZ-EBV-350WF
Weight: 1.00
SKU: RDDLZ-EBV-350WF

Available Options

Short Description

Power Supply

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

Industrial electric actuated flanged butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an electric actuator and stainless steel disc, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-350WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Flanged Type
	Port Size	14 inch (DN350, 350mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-200
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	2000N.m, 100s
	Actuator Material	Aluminum Alloy

Flanged Butterfly Valve Body Dimension (Unit: mm)

DN	L	D	D1	D2	T	A	H	N-φd
350	190	505	460	430	30	280	567	16-12

Details

Tips: Electric actuated butterfly valve basics

The electric actuated butterfly valve opening and closing part is a disc-shaped butterfly plate, which rotates around its own axis in the valve body to achieve opening and closing or adjustment. The electric butterfly valve is usually less than 90 degrees from fully open to fully closed. The butterfly valve and the butterfly stem themselves do not have self-locking force. In order to locate the butterfly plate, a worm gear reducer should be installed on the valve stem. The use of worm gear reducer can not only make the butterfly plate have self-locking ability, so that the butterfly plate can stop at any position, but also improve the operation performance of the valve.

The characteristics of the butterfly valve for industrial use are high temperature resistance, high applicable pressure range, large nominal diameter of the valve, the valve body is made of carbon steel, and the sealing ring of the valve plate is made of metal ring instead of rubber ring. Large high temperature butterfly valve is made of steel plate welding, mainly used for flue air duct and gas pipeline of high temperature medium. Concentric butterfly valve the structural feature of this kind of butterfly valve is that the shaft center of the valve stem, the center of the butterfly plate, and the center of the body are in the same position. The structure is simple and the manufacture is convenient.
