10μF 16V Tantalum Capacitor

0 reviews • Write a review

from

$1.57

Ex Tax: $1.57

Stock: In Stock
Model: RDDLZ-TC-10UF16V
Weight: 1.00
SKU: RDDLZ-TC-10UF16V

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality 10μF tantalum capacitor with 16V voltage. Working temperatures of 106C tantalum capacitor range from -40 ℃ to 125 ℃. Tantalum capacitor applies in mobile phone, printer and electric tool.

Features:

Small volume and small capacity error
Wide temperature range, high temperature resistance
Long life, high insulation resistance, small leakage current
Equivalent series resistance (ESR) has good high frequency performance

Specification:

Nominal Capacity	10μF, 16V
Type	DIP	SMD
Equivalent Series Resistance	1
Net Size	1 mm	2.2 mm
Tolerance	10%
Height Mounting (Maximum)	1 mm	1 mm
Leading Spacing	2.54 mm	Leadless
Working Temperature	-40 ℃— +125 ℃	-85 ℃— +125 ℃

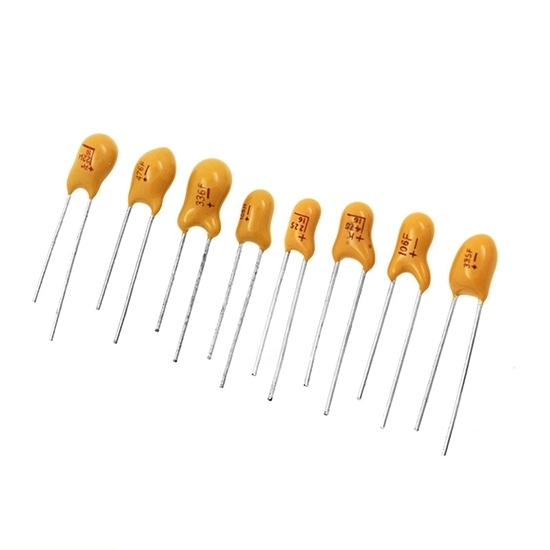

DIP Tantalum Capacitor Dimension: (Unit: mm)

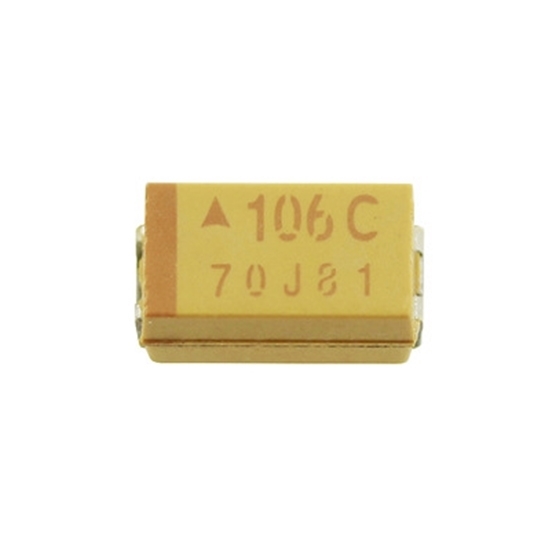

SMD Tantalum Capacitor Dimension: (Unit: mm)

C: L= 6.0, S= 1.3, W₁= 3.2, W₂= 2.2, H= 2.5

Tips: Tantalum Capacitor Marking

Tantalum capacitors are innately polarized capacitors with positive and negative lead and are appropriate with DC supplies. The polarity and markings on the capacitors make it easy to identify the anode and cathode.
Two bands and a positive sign helps in identifying the value of capacitance and maximum working voltage.
The top most value to the left reveals the capacitance value in microfarads (μF).
The voltage below the capacitance value is the maximum working voltage of a capacitor, i.e, 25V.
A positive (+) sign is noticed below the long band. The combination of a long band and a "+" sign indicates that this side has a positive lead / anode, while the other side indicates a negative lead / cathode. The reverse voltage or wrong connection could damage the capacitor.
