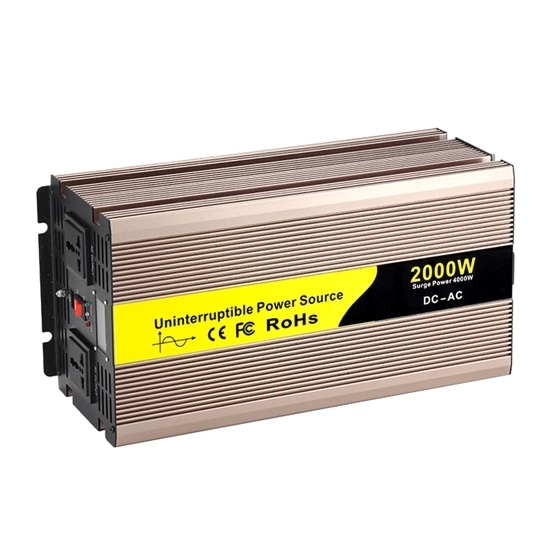

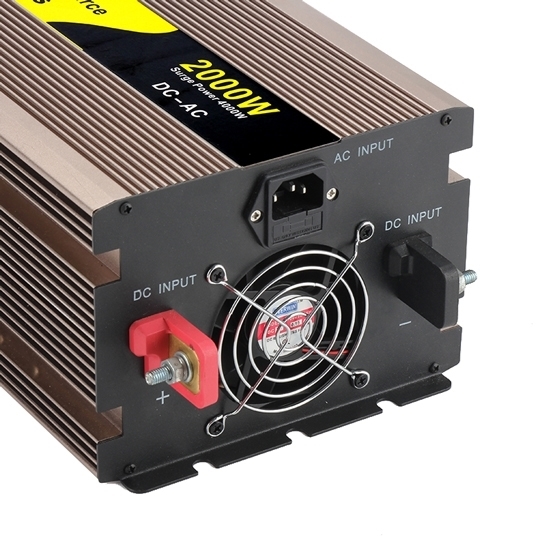

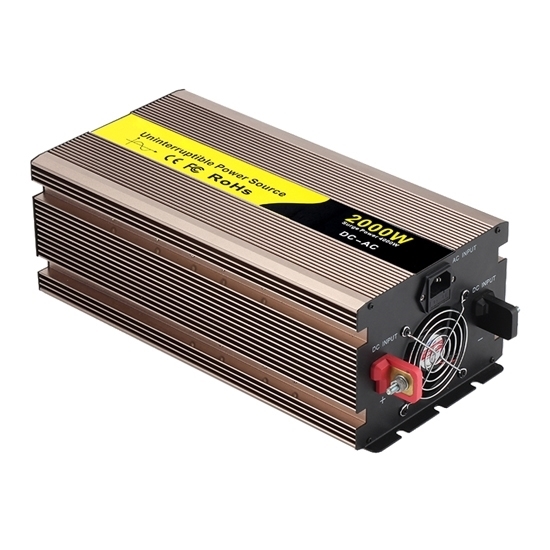

Pure sine wave ups home inverter price with 2000 watt (2200 VA) power. It can meet any type of AC load, without damaging the load, small in size, elegant in appearance and easy to carry.

Features

• 2 kVA ups inverter with pure sine wave output (THD＜3%).
• Built-in 3-stages battery charger, allow to run loads while charging.
• Automatically switch with a ultra-fast switching time.
• High efficiency-converts the battery's available power.
• Pure sine wave ups inverter uses soft-start technology.
• 2000W ups inverter with 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
• Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries in 2000 watt ups inverter.
• Aluminum shell with good heat dissipation and strong shock resistance.
• Uninterruptible power supply with USB charging port: 5V, ideally qualified for powering your phone, laptop, pc, etc.
• Intelligent fan for cooling, long use life.
• LED indicators for power and protections.
• Switch-mode design in 2 kW ups inverter, easy to use.

Specification

• Model: RDDLZ-REPU-2000
• Rated Power: 2000W (2200 VA)
• Peak Power: 4000W
• Input Voltage: DC 12V, DC 24V, DC 48V (Optional)
• Output Voltage: 100V AC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC±5% (Optional)
• Output Frequency: 50Hz±0.5Hz, 60Hz±0.5Hz (Optional)
• Phase: 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
• Output Waveform: Pure sine wave
• Waveform Distortion: THD＜3% (Linear load)
• Cooling Method: Intelligent air cooling
• Power Switching Time: ≤ 9 ms
• USB Port: 5V 1A
• Max. Efficiency: 90%
• Working Temperature: -10 ℃— +50 ℃
• Storage Temperature: -30 ℃— +70 ℃

Dimension (Unit: mm)

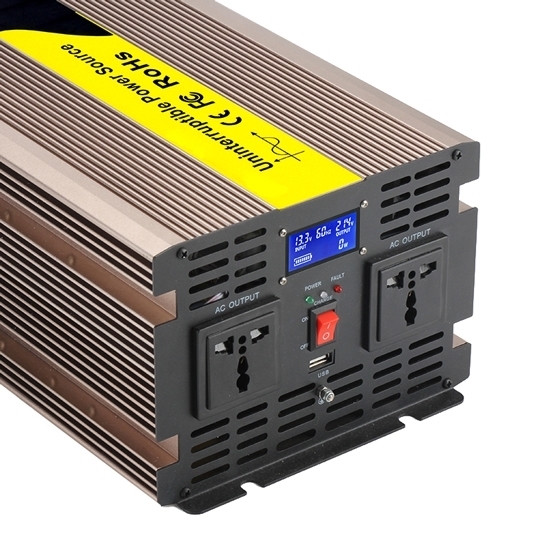

UPS Inverter Output Socket (Optional)

Advantages of UPS Inverter

Tips: How to Maintain UPS Inverter?

When using ups inverter, the battery must be fully charged, and the battery wiring should be in good contact. Do not start the ups when the voltage is too low or the battery is not connected. Otherwise, risks may be occured.

• Before starting the ups, turn off all the loads. After the ups normally supplies voltage, power the load.
• Do not start the ups when there is no mains supply. When the mains fails, turn off the ups. After the ups is shut down, wait at least 10 seconds before starting it. Otherwise, the ups may be damaged.
• The actual load of the ups is 70% of its power. If the actual power is 700W, select the ups with the power of 1000W. Note that the load should not be SCR rectifier circuit and large inductive circuit, otherwise it will be dangerous.
