12" Electric Wafer Butterfly Valve

0 reviews • Write a review

from

$2,434.39

Ex Tax: $2,434.39

Stock: In Stock
Model: RDDLZ-EBV-300WF
Weight: 1.00
SKU: RDDLZ-EBV-300WF

Available Options

Short Description

Power Supply

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

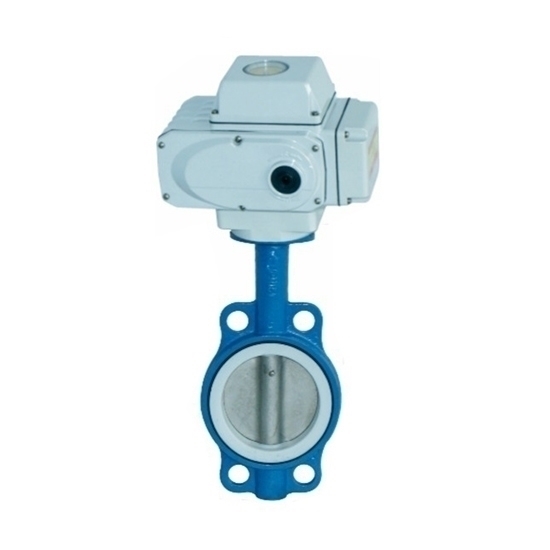

Industrial electric actuated wafer type butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-300WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type
	Port Size	12 inch (DN300, 300mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-100
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	800N.m, 30s 1000N.m, 50s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
300	77	242	490	280	407	370	4-29

Details

Tips for using electric actuated butterfly valve

When the pressure of the electric actuated butterfly valve exceeds the design regulations, it will automatically open to release the excessive pressure in the gas pressure reducer to prevent damage to the container or pipeline.
When the pressure in the vessel drops to normal working pressure, it will automatically shut down to avoid exhausting all the gas due to overpressure in the vessel, resulting in waste and production interruption. The electric butterfly valve is mainly composed of 3 parts, including valve seat, valve disc (spool) and loading mechanism. Some valve seats are integrated with the valve body, and some are assembled with the valve body and connected to the equipment.
The valve disc is usually attached with a valve stem, and the valve stem is fixed on the valve seat. Above the disc is a loading mechanism that adjusts the loading size. When the pressure in the electric butterfly valve is within a certain working pressure range, the force of the internal medium acting on the valve disc is less than the force exerted on the valve by the loading mechanism, and the difference between the two constitutes the valve disc and the valve seat. The sealing force makes the valve disc press tightly on the valve seat, and the medium of the equipment cannot be discharged.
When the pressure in the equipment exceeds the specified working pressure and reaches the opening pressure of the electric butterfly valve, the force exerted by the internal medium on the alarm valve is greater than the force exerted by the loading mechanism on the alarm valve. At this time, the force exerted by the internal pressure on the valve disc is smaller than the force exerted by the loading mechanism, the valve disc is tightly pressed on the valve seat, the medium stops discharging, and the equipment continues to operate under normal working pressure.
