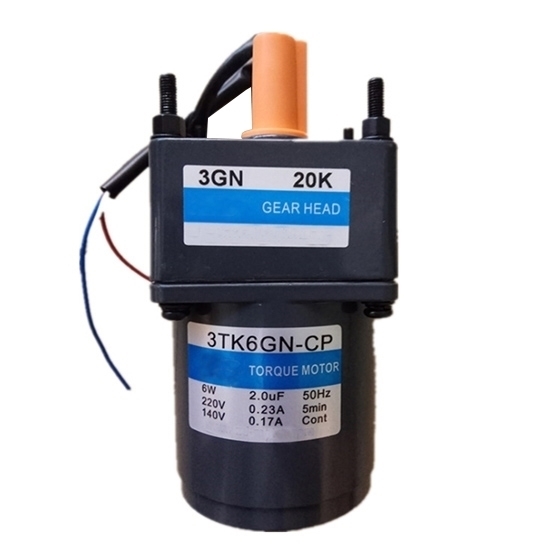

6 W AC Gear Motor, Torque Motor With Gearbox, Single Phase

0 reviews • Write a review

from

$154.68

Ex Tax: $154.68

Stock: In Stock
Model: RDDLZ-GEAR-6W
Weight: 1.00
SKU: RDDLZ-GEAR-6W

Available Options

Short Description

Model

Gear Ratio

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

6 W single phase AC gear motor & torque motor can act as a brake when back driven, or a simple device to provide tension. Depending on the torque setting, the motor will provide tension to the material while taking up slack in the line automatically, essentially matching the line speed. A high performance torque motor is an excellent product for winding and unwinding type applications.

Specifications

Model	RDDLZ-3TK6GN-A		RDDLZ-3TK6GN-C
Shaft Type	Pinion Shaft
Power	6 W
Frequency	50 Hz	60 Hz	50 Hz	60 Hz
Rating at Locked rotor	5 Min Continuous	5 Min Continuous	5 Min Continuous	5 Min Continuous
Voltage	110V	110V	220V	220V
Starting Torque	134 mN.m	134 mN.m	134 mN.m	134 mN.m
Max. Output Power	6 W	6.5 W	6 W	6.5 W
Torque at Max. Output Power	80 mN.m	74 mN.m	80 mN.m	74 mN.m
Speed at Max. Output Power	750 r/min	900 r/min	750 r/min	900 r/min
Capacitor	8.0/250	7.0/250	2.0/450	1.5/450
Weight	Motor: 1.1 Kg; Gear head: 0.5 Kg
Gearbox Model	3GN[]K
Gear Ratio	3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name

Speed-Torque Characteristics (Reference Values)
Dimensions (Unit=mm)
Wiring Diagram

Details

Tips

Torque motors have high starting torque and sloping characteristics, allowing speed control simply by changing the voltage of the power supply. (The motor torque changes approximately proportion to the square of the voltage.)
Suitable for winding applications. In an application where an object is released continuously at a constant speed and wound up with constant tension, the torque must be doubled and the speed must be halved if the diameter of the winding spool is doubled.
Use as a brake. By using the motor in the braking region of the speed - torque characteristics, it can serve as a brake. In addition, constant tension operation can be achieved by applying a DC voltage.
