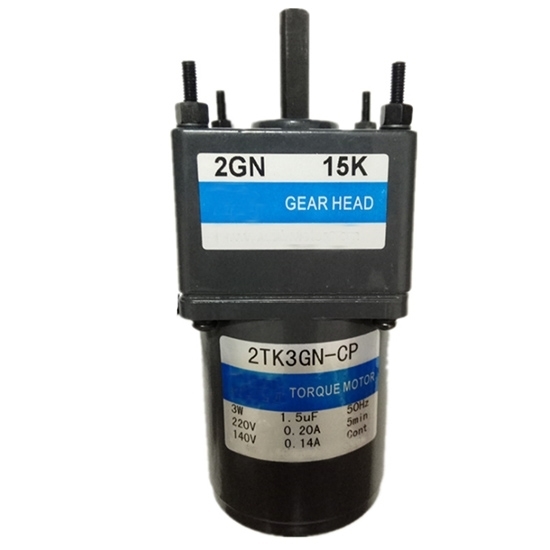

3 W AC Gear Motor, Torque Motor With Gearbox, Single Phase

3 W AC Gear Motor, Torque Motor With Gearbox, Single Phase
3 W AC Gear Motor, Torque Motor With Gearbox, Single Phase
0 reviews • Write a review
from
$128.41
Ex Tax: $128.41
  • Stock: In Stock
  • Model: RDDLZ-GEAR-3W
  • Weight: 1.00
  • SKU: RDDLZ-GEAR-3W

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Torque Motor Features

  • 3W power, 1350 rpm rated speed, works at single phase 110V/220V AC voltage.
  • The speed can vary widely, depending on the high starting torque and sloping characteristics.
  • Available with 3, 5, 6, 9...200 21 kinds of gear ratio for your choice.
  • The motor torque changes approximately proportion to the square of the voltage.

Specifications

ModelRDDLZ-2TK3GN-ARDDLZ-2TK3GN-C
Voltage110V220V
Power3 W
Shaft TypePinion Shaft
Frequency50Hz/60Hz
Starting Torque69 mN.m
Max. Output Power3.2 W
Torque at Max. Output Power41 mN.m at 50Hz, 37 mN.m at 60Hz
WeightMotor: 0.75 kg, Gear box: 0.4 kg
Gear Ratio3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200

Speed-Torque Curve

Dimensions (Unit: mm)

Wiring Diagram

Details

Tips: When the gear motor gets damp, how to solve?

In the actual production of the chemical enterprise, it is often found that some gear motors have not been used for a period of time. When they are turned on again, the insulation resistance of the gear motor windings is reduced. Especially during the rainy season, the air humidity is high and the insulation value may even be reduced to zero. At this time, dry processing should be performed so that the insulation resistance and absorption ratio can reach the specified value. If rushed in operation, it is possible to make the gear motor coil insulation breakdown, cause an accident. Using external heat source heating method can solve the problem of the dampness.

After the damped gear motor is dismantled and checked, the high-power incandescent light bulb is placed inside the gear motor to bake it, or the gear motor is placed in a drying room for drying. This method is easy to operate, safe and reliable, but it is only suitable for small gear motors that are easy to remove.
