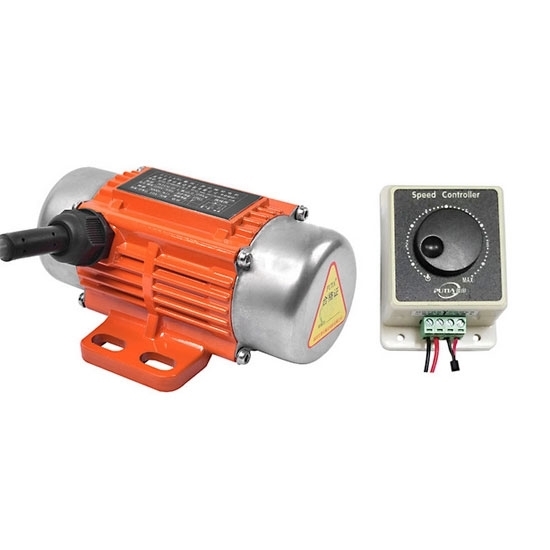

20W 12 Volt DC Brushed Vibrating Electric Motor With Controller

0 reviews • Write a review

from

$377.48

Ex Tax: $377.48

Stock: In Stock
Model: RDDLZ-DCVBM-2012
Weight: 1.00
SKU: RDDLZ-DCVBM-2012

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided 20W small vibration motor features a speed controller, 3000rpm, 2A current, force 20kg, insulation class F and IP65 waterproof and dustproof. Factory price 12V DC brushed vibration electric motor, manufacturer direct sale.

Specifications

Model	RDDLZ-MVB-20DC12-3
Volatge	12V
Current	2A
Power	20W
Speed	3000 rpm
Force	20 Kg, 0.2 kN
Frame No	3
Protection Level	IP65
Insulation Grade	F
Weight	3kg
Certificate	CE

Dimension (Unit: mm)

A	B	C	D	R	F	G	H	L	K	M	N	Cable Gland
27.5	91.5	166	110	69	9	9	35	55	17.5	33.5	66	M16*1.5

Internal Structure

Applications

RDDLZ 20W 12V micro brushed DC vibration electric motor is an ideal vibration source and excitation source for various vibration motors such as vibration conveyors, feeders, drying equipment, screening equipment, sand machines, vibration tables, etc., widely used in metallurgy, mining, coal, chemical, electric power, building materials, casting, abrasives, ceramics, glass, food and other industries.

Tips: What is the power rating of the DC vibration motor?

The power rating of RDDLZ DC vibration motors typically ranges from 10W to 160W. This range allows for a variety of applications depending on the required vibration intensity and motor size:

10W to 30W motors are suitable for smaller, lighter applications like small vibrators, mobile devices, or haptic feedback systems.
30W to 100W motors are used in medium-duty applications such as vibrating feeders, sorting equipment, or testing machines.
100W to 160W motors are designed for heavier-duty tasks requiring more power, such as industrial machinery or large vibratory screens.

The power rating affects the motor’s vibration intensity, torque, and efficiency, with higher wattages providing stronger vibrations and the ability to handle heavier loads.
