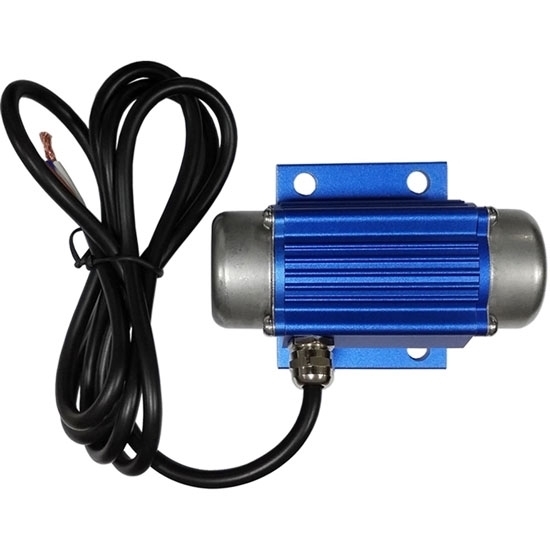

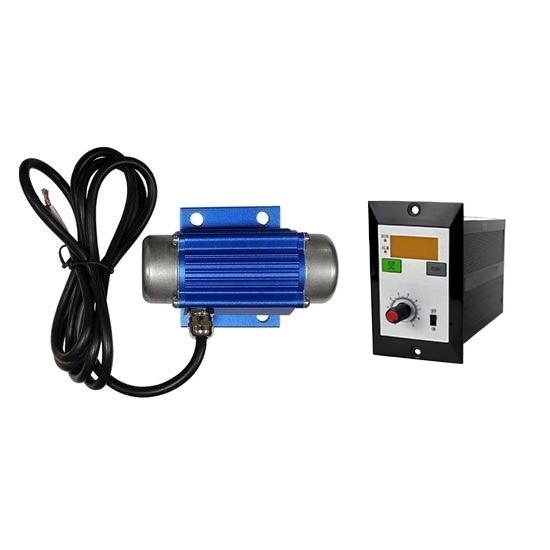

10W 12V/24V DC Brushless Vibration Electric Motor With Controller

0 reviews • Write a review

from

$388.48

Ex Tax: $388.48

Stock: In Stock
Model: RDDLZ-10DCBVM12-Z03
Weight: 1.00
SKU: RDDLZ-10DCBVM12-Z03

Available Options

Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 10W 3000rpm brushless vibration electric motor for sale online. 12V or 24 volt DC mini vibration motor can be selected. It is equipped with variable speed display control, IP65 dustproof and waterproof, CE certified, special for industrial needs.

Features

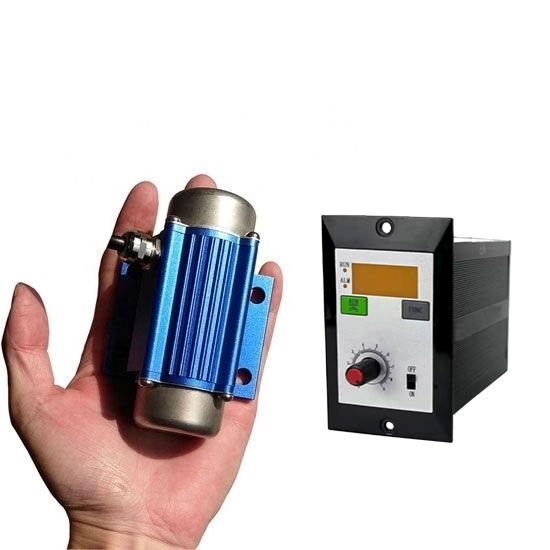

10W 12V/24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
Special voltage and speed can be customized, please contact us.

Specification

Model	RDDLZ-MVB5DCB12-1	RDDLZ-MVB5DCB21-1
Rated Speed	3000rpm
Rated Voltage (Motor & Controller)	12V	24V
Rated Current	0.8A	0.4A
Power	10W
Force	3 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection Rank	IP65 (Dustproof and Waterproof)
Insulation Grade	F (The Highest Heat Resistant Temperature is 155℃)
Cooling Mode	Natural Cooling (IC410)
Working System	S1 (Continuous Duty)
Dimensions	105.4mm x 75mm x 47.35mm
Weight	1.2 kg
Certificate	CE

Notes

+/- 20% voltage tolerance.
Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

Dimension (Unit: mm)

Appearance Contrast Chart

Applications

RDDLZ 10W 12V/24V 3000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: Advantages of 10W DC Brushless Vibration Motor

The working part of the vibrator is a hollow cylinder with a stick makeup. The inside is equipped with an eccentric vibrator. The DC brushless vibrating motor drives the high-speed rotation to generate high-frequency micro-vibration. The vibration frequency can reach 1,200-15,000 times/min, and the vibrating effect is good.

The structure of the RDDLZ DC vibrating electric motors is simple and the service life is longer than that of an ordinary DC brushless motor, suitable for vibrating beams, columns, walls and other components and general concrete.
