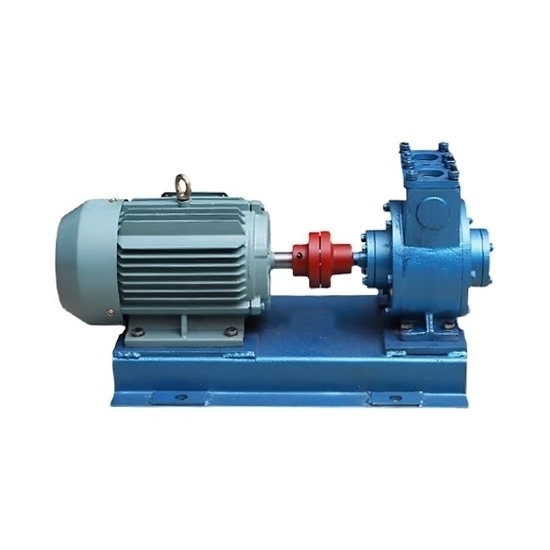

A 5.5 hp sliding vane pump is a type of positive displacement pump commonly used for transferring liquids with varying viscosities. The sliding vane design provides several advantages, including self-priming capability, high efficiency, and the ability to handle a wide range of fluid viscosities.

Features:

• Slide pump has a strong self-priming capacity.
• Mechanical seal with special structure is safe, durable and reliable.
• Pump vane by centrifugal force, mechanical thrust, hydraulic pressure combined action, so that the pump has a unique high efficiency.

Specification:

• Model: RDDLZ-60YPB-16
• Voltage: 380V
• Power: 5.5 HP (4 kW)
• Capacity: 16 m³/h
• Pressure: 0.6 MPa
• Rotate Speed: 960 r/min
• Self-priming Height: 6.5m

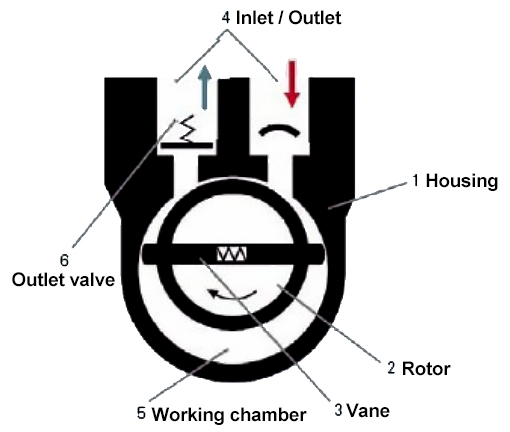

Structure:

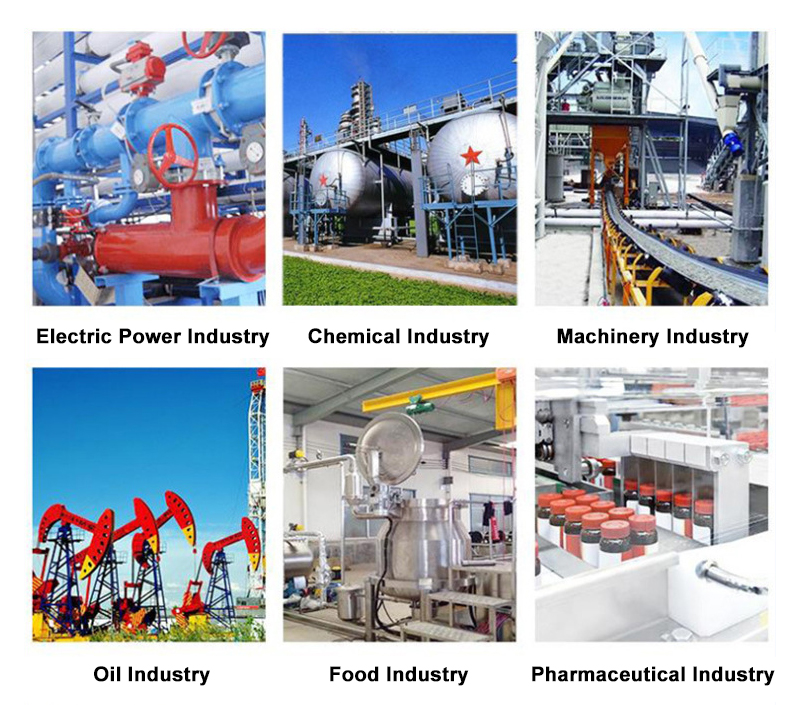

Application:

Tips: What are the Advantages of Sliding Vane Pump?

• Versatility. Sliding vane pumps can handle a wide range of fluids, from thin liquids to highly viscous fluids, making them suitable for a wide range of applications across different industries, such as automotive, chemical, food and beverage, oil and gas, and more.
• Self-priming. Sliding vane pumps are typically self-priming, which means they can evacuate air from the pump and suction lines without the need for external priming. This makes them ideal for applications where the pump needs to start and operate reliably in situations where the pump is located above the fluid level or when the suction line may contain air or gas.
• High efficiency. Sliding vane pumps are known for their high volumetric efficiency, which means they can deliver a consistent flow rate with minimal pulsation.
