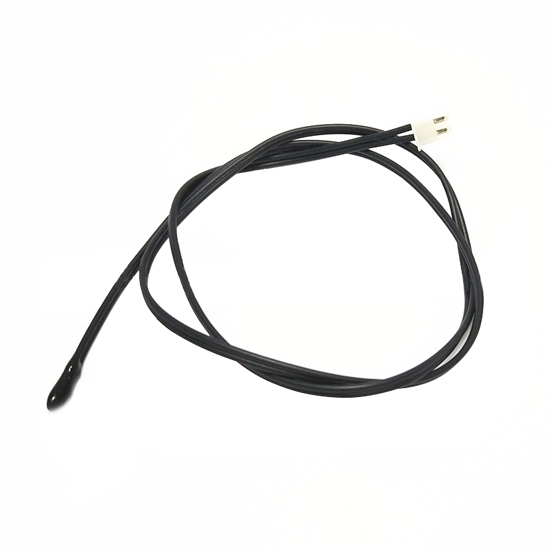

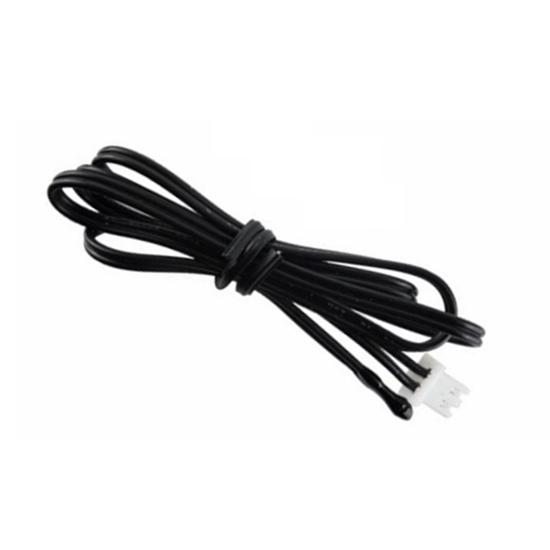

NTC thermistor temperature sensor adopts double-layer sealing process, has good insulation sealing and mechanical collision resistance, bending resistance, high reliability, can be packaged according to the installation conditions of use, easy for users to install. NTC thermistor temperature transmitter is widely used in household air conditioners, car air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters and other occasions for temperature measurement and control.

Specification

Features

• The NTC thermistor temperature sensor probe has stable performance and can work for a long time.
• NTC thermistor temperature sensor has high sensitivity, quick response, high resistance value and B value accuracy, good consistency.
• Adopting a double-layer sealing process, it has good insulation sealing and mechanical collision resistance, bending resistance, high reliability.
• It can be made into high dissipation products, and the test current can be much higher than the traditional structure sensor, simplifying the test circuit.

Dimensions (Unit: mm)

Details

Application

Tips: Uses of NTC temperature sensors with different resistance values

• 5kΩ~10kΩ: NTC temperature sensors with 5kΩ~10kΩ are suitable for medium and high temperature measurements (50°C~150°C) because their low resistance changes significantly in the high temperature zone and they have a fast response speed, making them suitable for overheating protection. In addition, they are easy to match with 5kΩ or 10kΩ voltage divider resistors, suitable for high-precision ADC circuits, and reduce noise interference. Typical applications include industrial equipment temperature detection and high-temperature segment monitoring of electric vehicle batteries.
• 20kΩ~50kΩ: NTC temperature sensors with 20kΩ~50kΩ are suitable for a wide temperature range (-30°C~100°C), such as automotive air conditioning systems, smart home temperature and humidity sensors, and medical equipment. This type of resistance strikes a balance between sensitivity and power consumption, and is suitable for battery-powered wireless sensor nodes.
• 100kΩ: 100kΩ NTC temperature sensors are designed for low temperature measurements (-50°C~50°C), such as cold chain logistics, freezer monitoring or polar equipment. Its high resistance value changes significantly in the low temperature range, improving detection resolution while reducing current consumption, making it suitable for IoT devices powered by button batteries.
