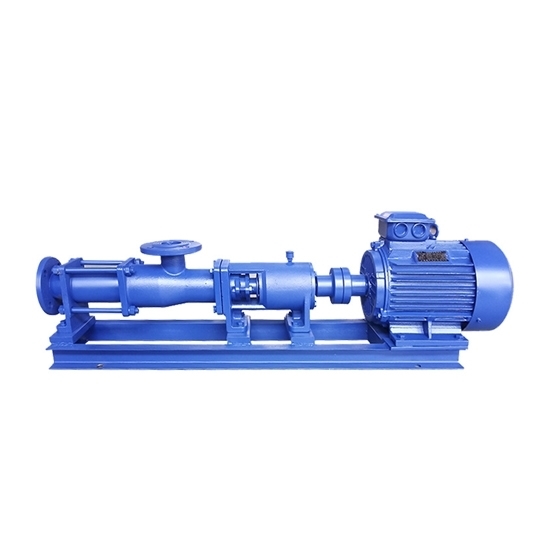

1 Hp (0.75 KW) Screw Pump, 380V

0 reviews • Write a review

from

$2,055.08

Ex Tax: $2,055.08

Stock: In Stock
Model: RDDLZ-SP-1HP
Weight: 1.00
SKU: RDDLZ-SP-1HP

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The device of 1 hp (0.75 kW) screw pump includes prime mover, variable speed transmission device and screw pump three parts. G type screw pump belongs to a meshing closed screw pump.

Features:

Small mechanical vibration, no pulsation, stable operation.
Besides can transport all kinds of fluid medium, can also transport high viscous medium.
Flow is proportional to speed, with the help of the governor can realize the amount of automatic regulation.

Specification:

Model: RDDLZ-G20-1
Voltage: 380V
Power: 1 hp (0.75 kW)
Flow Rate: 0.8 m³/h
Pressure: 0.6 MPa
Max Speed: 960 r/min
NPSH: 4m
Suction Flange Diameter: 25 mm
Discharge Flange Diameter: 25 mm
Max Granule Size: 1.5 mm
Max Fibre Size: 25 mm

Structure:

1. outlet	2. pull bar	3. stator	4. screw shaft
5. gimbal	6. inlet	7. connect shaft	8. stuff seat
9. stuff gland	10. bearing house	11. bearing	12. gearing shaft
13. bearing cover	14. coupling	15. base plate	16. motor

Tips: What are the Advantages of Screw Pump?

High Efficiency. Screw pumps are highly efficient and can handle fluids with a wide range of viscosities. This makes them ideal for pumping liquids that are difficult to move with other types of pumps.
Low Maintenance. Screw pumps have few moving parts, which means they require less maintenance than other pumps. This reduces the overall cost of ownership and increases their lifespan.
Self-Priming. Screw pumps are self-priming, which means they can lift fluid from a lower level without the need for additional equipment or priming.
Easy to Install. Screw pumps are relatively easy to install and can be configured to fit into a variety of applications. They are also compact in size, making them ideal for applications where space is limited.
