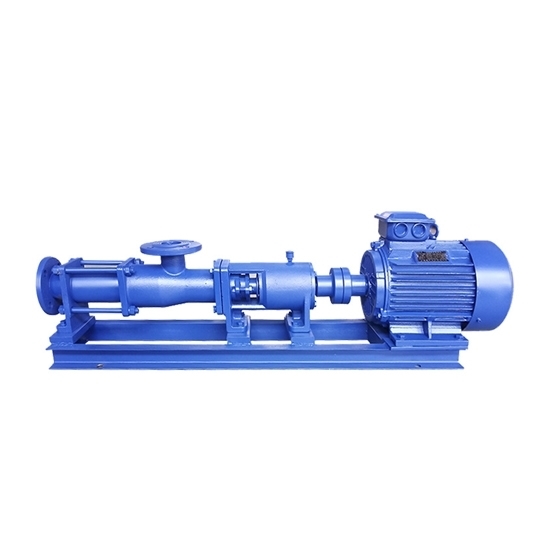

3 Hp (2.2 KW) Screw Pump, 380V
from
$3,231.35
Ex Tax: $3,231.35
- Stock: In Stock
- Model: RDDLZ-SP-3HP
- Weight: 1.00
- SKU: RDDLZ-SP-3HP
3 hp screw water pump with affordable price for sale online. Single screw pumps are well-suited for handling viscous, abrasive, and shear-sensitive materials, making them ideal for applications in industries such as wastewater treatment, food processing, and chemical manufacturing.
Features:
- Small mechanical vibration, no pulsation, stable operation.
- Besides can transport all kinds of fluid medium, can also transport high viscous medium.
- Flow is proportional to speed, with the help of the governor can realize the amount of automatic regulation.
Specification:
- Model: RDDLZ-G25-2
- Voltage: 380V
- Power: 3 hp (2.2 kW)
- Flow Rate: 2 m3/h
- Pressure: 1.2 MPa
- Max Speed: 960 r/min
- NPSH: 4m
- Suction Flange Diameter: 32 mm
- Discharge Flange Diameter: 25 mm
- Max Granule Size: 2 mm
- Max Fibre Size: 30 mm

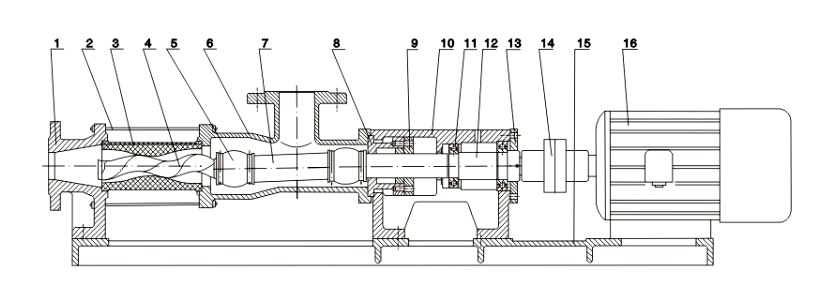

Structure:
| 1. outlet | 2. pull bar | 3. stator | 4. screw shaft |
| 5. gimbal | 6. inlet | 7. connect shaft | 8. stuff seat |
| 9. stuff gland | 10. bearing house | 11. bearing | 12. gearing shaft |
| 13. bearing cover | 14. coupling | 15. base plate | 16. motor |
Tips: Screw Pump Troubleshooting
- Noisy operation. If your pump is making excessive noise, it could be due to worn bearings or misalignment of the screw or the shaft. Check to see if the bearings need to be replaced or if there is any misalignment in the pump components.
- Leaking fluid. If you notice any fluid leaking from the pump, check the seals and gaskets to make sure they are not worn or damaged. Also, ensure that the pump is not overpressurized, as this can cause the seals to fail.
- Overheating. If your pump is running too hot, check to make sure that the cooling system is functioning properly. Also, ensure that the pump is not being overloaded or that the motor is not running at too high of a speed.
