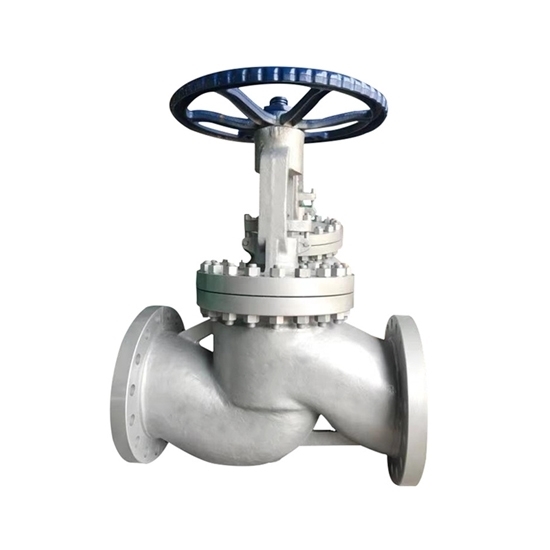

1/2" Flanged Globe Valve

0 reviews • Write a review

from

$270.16

Ex Tax: $270.16

Stock: In Stock
Model: RDDLZ-GV-15FGV
Weight: 1.00
SKU: RDDLZ-GV-15FGV

Available Options

Short Description

Pressure

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Flange globe valve with thickened body, not easy to burst and good sealing. The medium for the globe valve is water, oil and steam.

Features:

Streanline, outside screw and yoke.
Loose disc, rising stem and handwheel.
Yoke integral with bonnet, available with gear operator.

Specification:

Model: RDDLZ-J41H-16/25C-DN15
Port Size: 1/2 inch (DN15)
Material: carbon steel
Structural Style: straight through form
Connection Type: flange connection
Medium: water, oil, steam
Pressure: 16Mpa/2.5Mpa
Direction of Flow: one way flow
Drive Mode: manual
Working Temperature: -29 ℃~425 ℃
Net Weight: 8kg

Dimension (Unit: mm)

DN (mm)	L	D	D₁	D2	b	Z-φd	H	Do
DN15	130	95	65	45	16	4-φ14	218	120

Tips: Advantages of Globe Valve

Compared with gate valve, the globe valve is simple in structure, convenient in manufacture and maintenance.
Sealing surface is not easy to wear, abrasion, good sealing and long life.
When opening and closing, the disc stroke is smaller, the opening and closing time is shorter, and the valve height is smaller.
