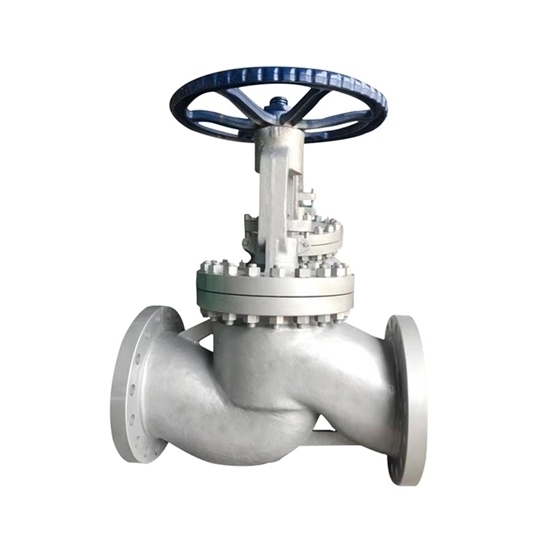

1" Flanged Globe Valve

0 reviews • Write a review

from

$324.68

Ex Tax: $324.68

Stock: In Stock
Model: RDDLZ-GV-25FGV
Weight: 1.00
SKU: RDDLZ-GV-25FGV

Available Options

Short Description

Pressure

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The performance of flange globe valve is stable. The structure of the globe valve is straight through. The flow direction of 1 inch globe stop valve is one-way flow.

Features:

Streanline, outside screw and yoke.
Loose disc, rising stem and handwheel.
Yoke integral with bonnet, available with gear operator.

Specification:

Model: RDDLZ-J41H-16/25C-DN25
Port Size: 1 inch (DN25)
Material: carbon steel
Structural Style: straight through form
Connection Type: flange connection
Medium: water, oil, steam
Pressure: 1.6Mpa/2.5Mpa
Direction of Flow: one way flow
Drive Mode: manual
Working Temperature: -29 ℃ ~ 425 ℃
Net Weight: 11kg

Dimension (Unit: mm)

DN (mm)	L	D	D₁	D2	b	Z-φd	H	Do
DN25	160	115	85	65	16	4-φ14	275	160

Tips: Disadvantages of Flanged Globe Valve

Fluid resistance, open and close when the required force is larger.
It is not suitable for medium with particles, high viscosity and easy coking.
Poor adjustment performance.
