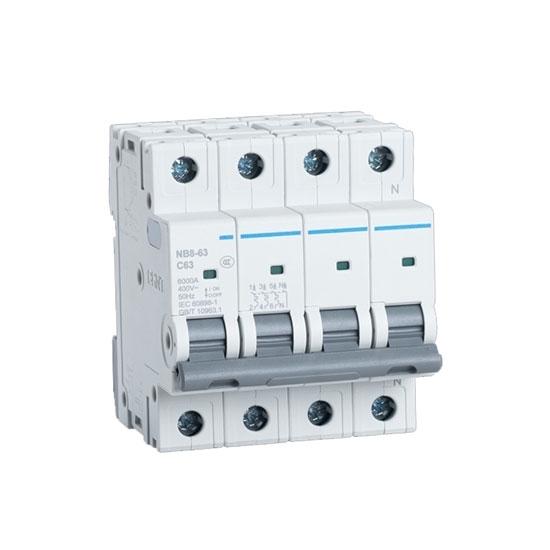

2 Amp 4 Pole Miniature Circuit Breaker

0 reviews • Write a review

from

$93.29

Ex Tax: $93.29

Stock: In Stock
Model: RDDLZ-MCB-4P02
Weight: 1.00
SKU: RDDLZ-MCB-4P02

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ favorable price 2 amp miniature circuit breaker is suitable for preventing potential damage to equipment and reducing the risk of fire or electrical hazards. 4 pole mini MCB breaker protects against both overload and short circuits, ensuring the safety and longevity of electrical systems.

4 Pole MCB Breaker Information

Rated Current: 2 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 4 pole
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		RDDLZ-NB8-634PC02
Rated Current		2A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		4P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

4 Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: Basic requirements for the operating of a miniature circuit breaker

A miniature circuit breaker (MCB) is a crucial safety device in electrical systems, designed to protect circuits from overloads and short circuits. Here are the basic requirements for operating an MCB:

Correct Voltage Rating: Ensure the mini MCB matches the voltage rating of the system. Using an MCB with a lower voltage rating than the system can lead to malfunction and potential failure.
Appropriate Current Rating: Choose a micro circuit breaker with a current rating that aligns with the maximum expected load on the circuit. The MCB should be capable of handling normal operation without tripping, while still offering protection during overloads.
Proper Installation: Install the MCB in a standard distribution board with adequate space and ventilation to prevent overheating. Ensure it's securely connected to the circuit.
Periodic Testing: Regularly test the MCB by manually tripping it and checking its functionality to ensure it operates correctly in case of an overload or short circuit.
Avoid Frequent Overloading: Overloading an MCB can reduce its lifespan and lead to permanent damage.
