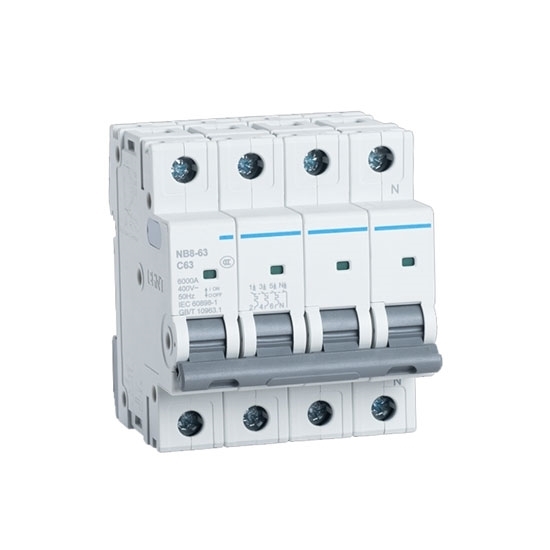

40 Amp 4 Pole Miniature Circuit Breaker

0 reviews • Write a review

from

$83.29

Ex Tax: $83.29

Stock: In Stock
Model: RDDLZ-MCB-4P40
Weight: 1.00
SKU: RDDLZ-MCB-4P40

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4 pole MCB miniature circuit breaker is rated for 40 amps with a C trip curve, offering dependable overload and short circuit protection for electrical systems. This mini circuit breaker features a 6kA breaking capacity, delivering superior protection in both commercial and industrial settings.

4 Pole MCB Breaker Information

Rated Current: 40 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 4 pole
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		RDDLZ-NB8-634PC40
Rated Current		40A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		4P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

4 Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: Main parameters of miniature circuit breaker

A miniature circuit breaker (MCB) is an essential component used for protecting electrical circuits from overload and short circuits. Here are the main parameters to consider when selecting an MCB:

Rated Current (In): The maximum current the MCB can carry without tripping, typically measured in amperes (A).
Breaking Capacity (Icu): The maximum fault current the mini circuit breaker can interrupt without causing damage, expressed in kA.
Tripping Curve: Defines the time it takes for the MCB to trip at different levels of overcurrent. Common types include B, C, and D curves, each suitable for different applications.
Rated Voltage (Un): The voltage the micro circuit breaker is designed to operate at, usually 230V or 400V for residential or industrial systems.
Poles: The number of poles (single, double, triple, or four-pole) depends on the configuration of the circuit.
Environmental Conditions: Consider temperature, humidity, and altitude ratings for optimal performance.
