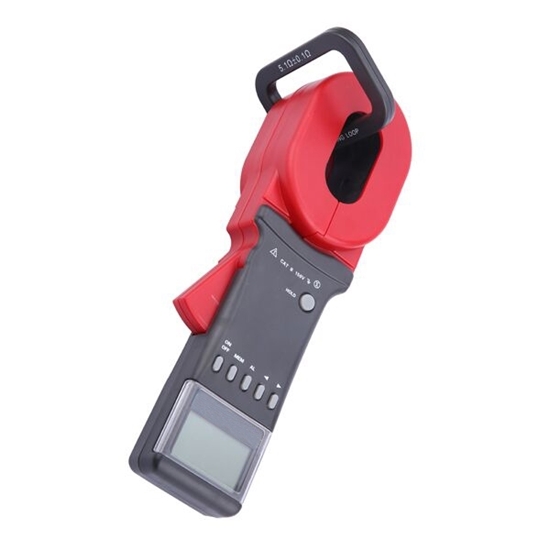

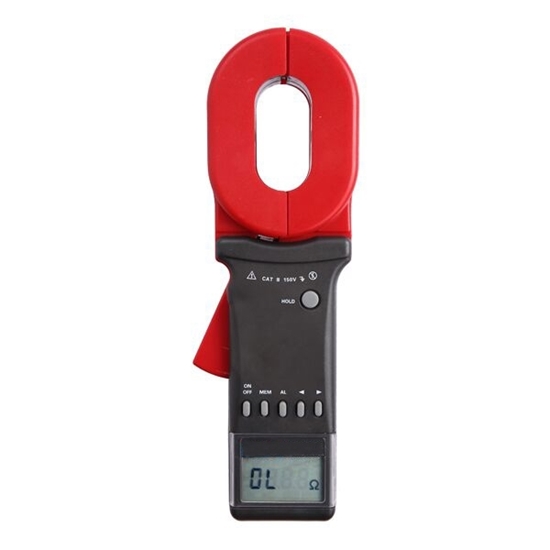

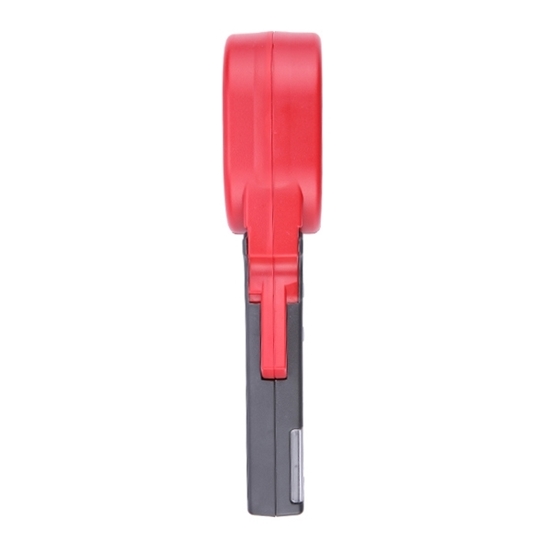

Clamp-on Earth Resistance Tester, 0.010Ω To 200Ω

0 reviews • Write a review

from

$400.74

Ex Tax: $400.74

Stock: In Stock
Model: RDDLZ-ERT-200
Weight: 1.00
SKU: RDDLZ-ERT-200

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a clamp-on ground resistance tester to accurately test ground resistance with a measurement range of 0.010Ω to 200Ω. Digital earth tester is suitable for grounding system measurements in power systems, telecommunications, meteorology, oil fields and buildings.

Features

Digital earth resistance tester is a high-quality ground resistance tester, available with a 32mm clamp and 0.010Ω~200Ω measure range.
Ground resistance tester is a non-contact measurement, which is safe and fast. When measuring the loop grounding system, there is no need to disconnect the grounding lead and the auxiliary grounding electrode.
The clamp ground resistance tester can measure ground faults that cannot be measured by traditional methods and is suitable for occasions where traditional methods cannot be used.
The LCD of the earth testing meter clearly displays the measurement data in high definition, and the data can be displayed in a backlight.

Specifications

Model	RDDLZ-ERT-2000A+
Resistance Range	0.010Ω~200Ω
Current Range	-
Clamp Size	65mm×32mm
Tester Size	285mm×85mm×56mm
Resistance Tester Weight	2.3kg (including accessories)
Power Supply	6V DC ( 4 PCS of No.5 Alkaline dry batteries)
Single Measurement Time	0.5 second
LCD Screen	4 Digits LCD display, 47mm×28.5mm
Data Memory	99 groups
Audible And Visible Alarm	"du—du—du" for alarming, press AL to turn on/off
Alarm Threshold Setting Range	Resistance: 1-199Ω
Jaw Opening Size	32mm
Protection Class	Double insulation
Shift	Automatically
Accessories	Resistance Tester: 1PCS; Test Ring: 1PCS; Instrument Case: 1PCS
Clamp Meter Weight	About 1100g (including battery)

Resistance Measurement Accuracy

Range	Resolution	Accuracy
0.010Ω-0.099Ω	0.001Ω	±(1%rdg+0.01Ω)
0.10Ω-0.99Ω	0.01Ω	±(1%rdg+0.01Ω)
1.0Ω-49.9Ω	0.1Ω	±(1%rdg+0.1)
50.0Ω-99.5Ω	0.5Ω	±(1.5%rdg+0.5)
100Ω-200Ω	1Ω	±(2%rdg+1Ω)

Details

Applications

RDDLZ provides earth resistance testers with a measurement range of 0.00Ω-300kΩ, which are widely used in ground resistance measurement and loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring the grounding system with a loop, the ground resistance tester does not need auxiliary electrodes and does not need to disconnect the grounding wire, which is safer and faster.

Tips: What is a clamp earth resistance tester?

Clamp earth resistance tester can measure the connection resistance of any looped system without using an auxiliary ground rod or interrupting the grounding of the equipment under test. As long as the ground wire or ground rod is clamped with the clamp head, the ground resistance can be measured safely and quickly. It can also be applied to multiple parallel grounding systems.
