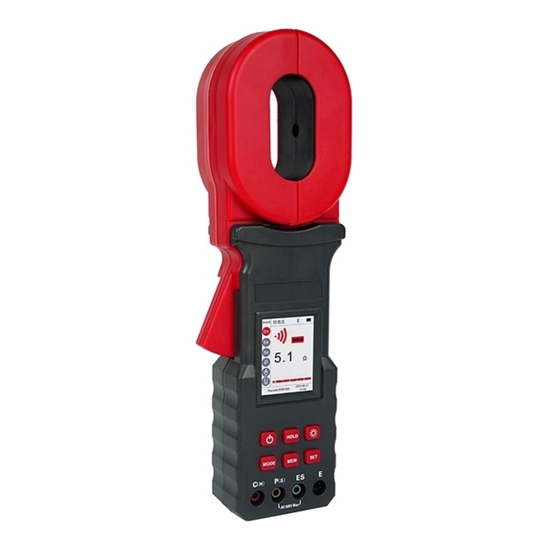

Clamp Earth Resistance Tester, 0 To 20kΩ

0 reviews • Write a review

from

$944.09

Ex Tax: $944.09

Stock: In Stock
Model: RDDLZ-ERT-20k
Weight: 1.00
SKU: RDDLZ-ERT-20k

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a high precision earth resistance tester online. It comes with a 0 to 20k ohm measurement range, 5-inch color LCD screen, USB interface charging port, storage function and clock function, suitable for measuring ground resistance, soil resistivity, ground current and ground voltage on site.

Features

RDDLZ earth resistance tester is available with a 32mm clamp and 0Ω~20kΩ measure range.
Clamp on earth resistance tester is designed for on-site measurement of ground resistance, soil resistivity, ground current, and ground voltage. It has a 2.5-inch color LCD screen. and USB interface charging port,
storage function, and clock function, and automatically stores 500 groups.
Digital ground resistance testers can measure grounding resistance by various measurement methods such as the clamp meter method, two-wire method, three-wire method, four-wire method, and selection method.

Specifications

Model	RDDLZ-ERT-2300
Resistance Range	0.00Ω～20kΩ
Soil Resistivity Range	0Ωm～9999kΩm
Ground Current Range	0.000mA～20A
Ground Voltage Range	0.0V～600.0V
Earth Resistance Measurement Methods	Clamp meter method, two-wire method, three-wire method, four-wire method, selection method
Test Frequency	128Hz/111Hz/105Hz/94Hz (AFC automatic frequency selection)
Display Mode	2.5-inch color LCD screen
Short Circuit Test Current	AC 10mA max
Open Circuit Test Voltage	AC 14V max
Electrode Spacing Range	1m～100m
Weight	5.1 kg
Clamp Size	65mm×32mm
Tester Size	307mm×98mm×56mm
Test Line	4 Pieces (red 20m, black 20m, yellow 10m, green 10m)
Simple Test Line	2 Pieces (red 1.6m, black 1.6m)
Auxiliary Ground Rod	4*Φ9mm×230mm (935g)
Measurement Times	more than 5000 times (short circuit test, test once, stop for 30 seconds and test again)
Line Voltage	measured below AC 600V
Data Memory	500 groups
Audible And Visible Alarm	"du—du—du" for alarming, press AL to turn on/off
Automatic Shut-Down	Automatic shutdown after 5 minutes of power on
Shift	Automatically
External Magnet/Electric Field	< 40A/m, < 1V/m
Resistance Test Frequency	＞1KHz, 128Hz
Interface	USB interface
Accessories	Resistance Tester: 1PCS; Test Loop:1PCS; Test Ring: 1PCS; USB Charging Cable:1PCS; Charger: 1PCS; Ground Pin: 4PCS; Test Leads: 4PCS; Simple Test Leads: 2PCS; Tool Box: 1PCS

Range and Accuracy

Measuring Function	Measuring Range	Accuracy	Resolution
Measuring Grounding Resistance with Clamp Meter	0.010Ω～0.099Ω	±（1%rdg＋0.05Ω）	0.001Ω
	0.10Ω～0.99Ω	±（1%rdg＋0.05Ω）	0.01Ω
	1.0Ω～49.9Ω	±（1%rdg＋0.5Ω）	0.1Ω
	50.0Ω～99.5Ω	±（2%rdg＋0.5Ω）	0.5Ω
	100Ω～199Ω	±（5%rdg＋1Ω）	1Ω
Two-Three-Four-Wire Method for Measuring Grounding Resistance	0.10Ω～20.00Ω	±2%rdg±5dgt	0.01Ω
	20.0Ω～200.0Ω	±2%rdg±5dgt	0.1Ω
	200Ω～2000Ω	±2%rdg±5dgt	1Ω
	2.00kΩ～20.00kΩ	±4%rdg±5dgt	10Ω
Selective Method for measuring grounding resistance	0.10Ω～20.00Ω	±2%rdg±5dgt	0.01Ω
	20.0Ω～200.0Ω	±2%rdg±5dgt	0.1Ω
	200Ω～2000Ω	±2%rdg±5dgt	1Ω
Soil Resistivity	0.00Ωm～99.99Ωm	Depends on the measurement accuracy of the R (ρ=2πaR a:1m～100m; π=3.14)	0.01Ωm
	100.0Ωm～999.9Ωm		0.1Ωm
	1000Ωm～9999Ωm		1Ωm
	10.00kΩm～99.99k		10Ωm
	100.0kΩm～999.9k		100Ωm
	1000kΩm～9999kΩm	π=3.14)	1kΩm
Ground Voltage 50Hz/60Hz	AC 0.0～600.0V	±2%rdg±5dgt	0.1V
Ground Current 50Hz/60Hz	0.000mA～5.000mA	±（2.5%rdg＋1mA）	0.001mA
	5.0mA～100.0mA	±（2.5%rdg＋5mA）	0.1mA
	100mA～500mA	±（2.5%rdg＋10mA）	1mA
	0.50A～20.00A	±（2.5%rdg＋0.5A）	0.01A

Note

The additional error when rC max or rP max is ≤±5%rdg±5dgt.
rC max: 4kΩ+100R＜50kΩ, rP max: 4kΩ+100R＜50kΩ
The additional error at 2.5V interference voltage is ≤±5%rdg±5dgt.

Details

Applications

RDDLZ provides earth resistance testers with a measurement range of 0.00Ω-300kΩ, which are widely used in ground resistance measurement and loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring the grounding system with a loop, the ground resistance tester does not need auxiliary electrodes and does not need to disconnect the grounding wire, which is safer and faster.

Tips: Why use a clamp earth resistance tester?

The clamp earth resistance meter can measure ground faults that cannot be measured by traditional methods and can be applied to occasions that cannot be measured by traditional methods. It is a major breakthrough in traditional ground resistance measurement technology and is widely used in electric power, telecommunications, meteorology, oil fields, construction and ground resistance measurement of industrial electrical equipment.
