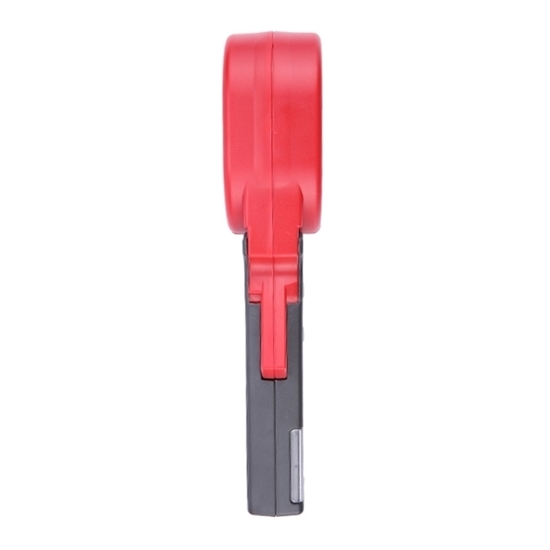

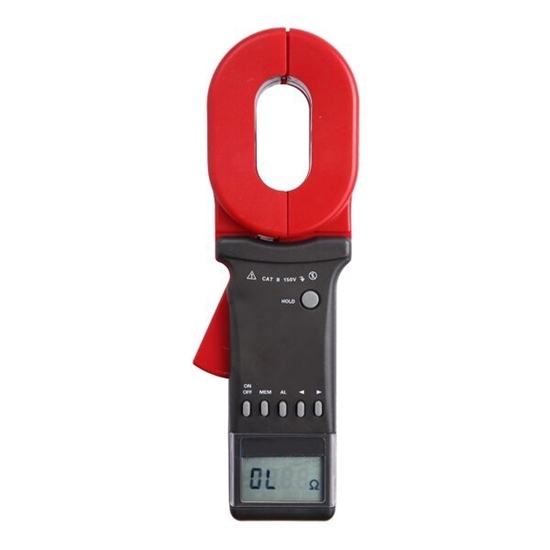

Digital Earth Resistance Tester, 0.010Ω To 1200Ω

0 reviews • Write a review

from

$627.61

Ex Tax: $627.61

Stock: In Stock
Model: RDDLZ-ERT-1200
Weight: 1.00
SKU: RDDLZ-ERT-1200

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Clamp-on ground resistance tester is designed for measuring earth resistance and loop resistance of electric power, telecommunication, meteorology, oil field, building and industrial electrical equipment. Low price digital earth tester comes with a 0.010Ω~1200Ω measurement range, 0.00mA~20.0A current range and a sound and light alarm, data storage and retention function.

Features

Digital earth resistance tester is a high-quality ground resistance tester, available with a 32mm clamp and 0.010Ω~1200Ω measure range.
Ground resistance tester is a non-contact measurement, which is safe and fast. When measuring the loop grounding system, there is no need to disconnect the grounding lead and the auxiliary grounding electrode.
The clamp ground resistance tester can measure ground faults that cannot be measured by traditional methods and is suitable for occasions where traditional methods cannot be used.
The LCD of the earth testing meter clearly displays the measurement data in high definition, and the data can be displayed in a backlight.

Specifications

Model	RDDLZ-ERT-2000C+
Resistance Range	0.010Ω~1200Ω
Current Range	0.00mA~20.0A
Clamp Size	65mm×32mm
Tester Size	285mm×85mm×56mm
Resistance Tester Weight	2.3kg (including accessories)
Power Supply	6V DC ( 4 PCS of No.5 Alkaline dry batteries)
Single Measurement Time	0.5 second
LCD Screen	4 Digits LCD display, 47mm×28.5mm
Data Memory	99 groups
Audible And Visible Alarm	“du—du—du” for alarming, press AL to turn on/off
Alarm Threshold Setting Range	Resistance: 1-199Ω, Current: 1-499mA
Jaw Opening Size	32mm
Protection Class	Double insulation
Shift	Automatically

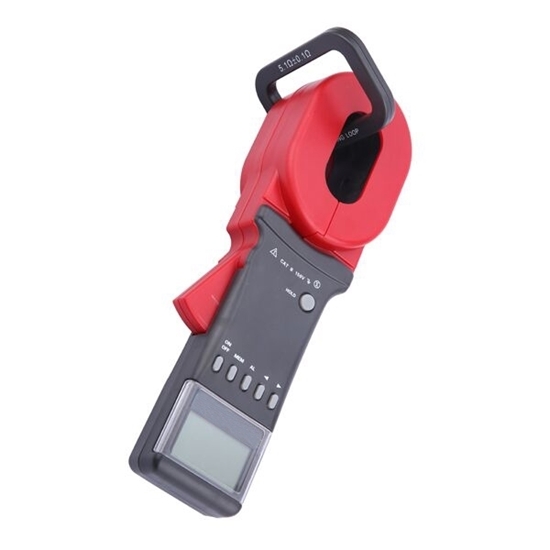

Accessories	Resistance Tester: 1PCS; Test Ring: 1PCS; Instrument Case: 1PCS
Clamp Meter Weight	About 1100g (including battery)

Resistance Measurement Accuracy

Range	Resolution	Accuracy
0.010Ω-0.099Ω	0.001Ω	±(1%rdg+0.01Ω)
0.10Ω-0.99Ω	0.01Ω	±(1%rdg+0.01Ω)
1.0Ω-49.9Ω	0.1Ω	±(1%rdg+0.12)
50.0Ω-99.5Ω	0.5Ω	±(1.5%rdg+0.5)
100Ω-199Ω	1Ω	±(2%rdg+1Ω)
200Ω-395Ω	5Ω	±(5%rdg+5Ω
400-590Ω	10Ω	±(10%rdg+10Ω)
600Ω-880Ω	20Ω	±(20%rdg+20Ω)
900Ω-1200Ω	30Ω	±(25%rdg+30Ω)

Current Measurement Accuracy

Range	Resolution	Accuracy
0.00mA-9.95mA	0.05mA	±(2.5%rdg+1mA)
10.0mA-99.0mA	0.1mA	±(2.5%rdg+5mA)
100mA-300mA	1mA	±(2.5%rdg+10mA)
0.30A-2.99A	0.01A	±(2.5%rdg+0.1A)
3.0A-9.9A	0.1 A	±(2.5%rdg+0.3A)
10.0A-20.0A	0.1A	±(2.5%rdg+0.5A）

Details

Applications

RDDLZ provides earth resistance testers with a measurement range of 0.00Ω-300kΩ, which are widely used in ground resistance measurement and loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring the grounding system with a loop, the ground resistance tester does not need auxiliary electrodes and does not need to disconnect the grounding wire, which is safer and faster.

Tips: What is the earth resistance tester used for?

The earth resistance tester can measure the grounding impedance, grounding resistance and grounding reactance of large grounding grids.
The earth resistance tester accurately measures the surface potential gradient in the large-scale grounding grid area.
Digital earth resistance tester can measure the contact potential difference, contact voltage, step potential difference and step voltage of large grounding grids.
The earth resistance tester is used to measure the transfer potential of large-scale grounding grids and soil resistivity, and the on-resistance of the grounding down-conductor.
