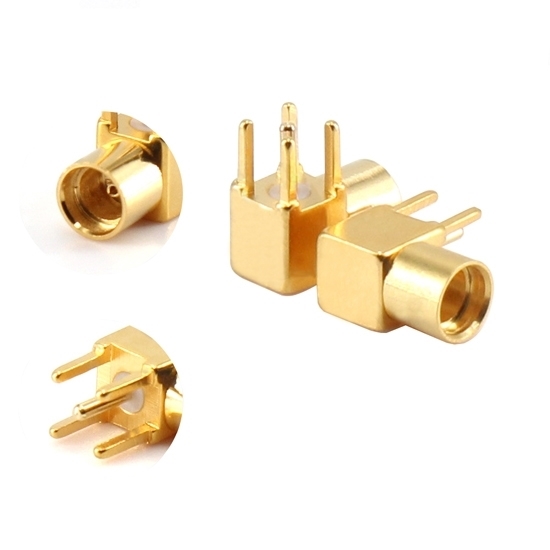

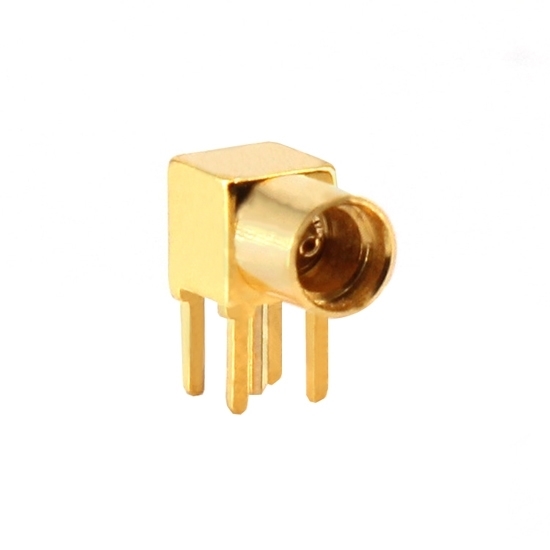

MMCX female (jack) RF coaxial connectors are integral for connecting antennas to devices, offering a secure and stable connection. The right angle coax connectors are designed for surface PCB mounts, playing a crucial role in ensuring efficient and high-quality signal transmission in various electronic systems.

Specification

• Model: RDDLZ-MMCXKWE-TB
• Frequency Range: DC~6GHz
• Standing Wave Ratio (VSWR): 1.20:1 (Max.)
• Impedance: 50 Ohm
• Insertion Loss: 0.25dB (Max.)
• Dielectric Withstand Voltage: 750V
• Insulation Resistance: ≥5000 Ohm
• Connector Type A: MMCX
• Connector Type B: PCB Board (Printed Circuit Board) Edge Mount
• Working Temperature: -55℃~+125℃
• Inner Conductor Material: Gold Plated Bronze
• Outer Conductor Material: Gold Plated Brass
• Insulator: PTFE
• Service Life: ≥500

Dimension (Unit: mm)

Tips: Are RF coaxial connectors compatible with different cable types?

RF coaxial connectors are designed to be versatile and adaptable, making them compatible with various cable types in the realm of radio frequency applications. These connectors come in standardized designs such as SMA, BNC, and N-type, each with specific frequency and power-handling capabilities. The compatibility extends to different cable types, including coaxial cables with varying impedances and constructions.

Connectors like SMA, for instance, can be used with cables ranging from flexible, low-loss varieties to semi-rigid and rigid cables, offering flexibility in design and installation. Adapters are also available to bridge compatibility between connectors and cables with different specifications. This compatibility ensures that RF coaxial connectors can be seamlessly integrated into diverse communication systems, providing a standardized interface for the transmission of radio frequency signals across a broad spectrum of cable types in electronic applications.
