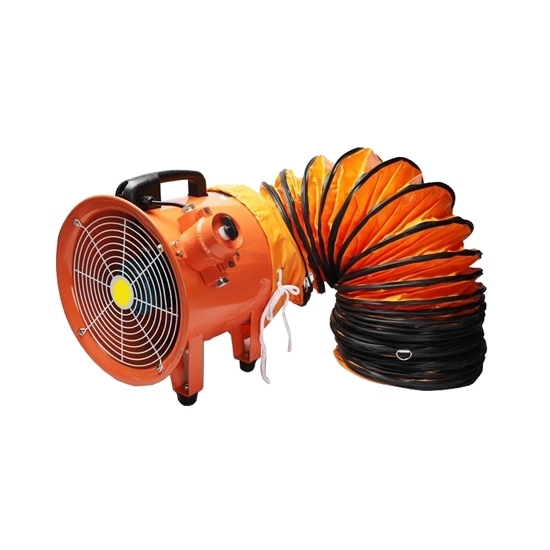

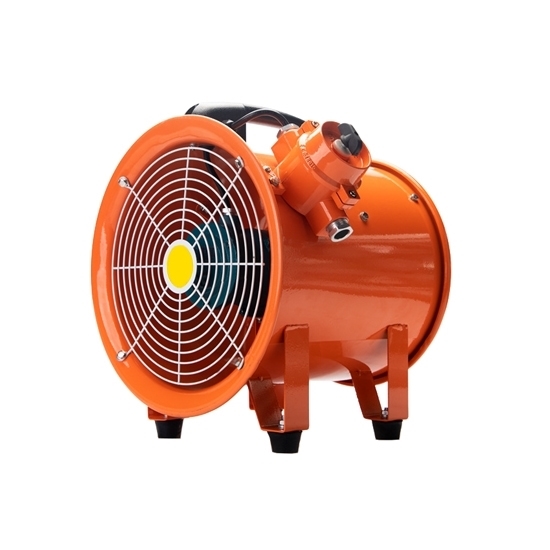

150W explosion proof portable exhaust fan is a specialized device designed to safely remove hazardous gases, fumes, or combustible materials from an area. This portable ventilation fan is constructed using durable materials and engineered with stringent safety measures to prevent the ignition of potentially explosive substances.

Specification

• Model: RDDLZ-BSFT-200
• Axis Power: 150W
• Motor Power: 150W
• Voltage (Optional): 220VAC, 380VAC, 110VAC
• Ventilation Duct: 5m (Default)/ Contact Us for Other Sizes
• Impeller Diameter: 190mm (7.5 inch)
• Air Volume: 1500~2100m³/h
• Static Pressure: 250~420Pa
• Rotating Speed: 2800r/min
• Frequency: 50/60Hz
• Explosion Proof Grade: ExdⅡBT4
• Weight: 27kg

Detail

Tips: How to use an explosion proof exhaust fan?

1. Safety first: Ensure that the area you're working in is classified as a hazardous location requiring an explosion-proof fan. Verify that the fan you have is specifically designed and rated as explosion-proof.
2. Placement: Position the fan in a location where it effectively removes hazardous gases, fumes, or vapors from the designated area. Make sure it's stable and securely placed to prevent any accidents.
3. Power source: Connect the fan to a suitable power source, preferably an outlet with the appropriate voltage and grounding. Ensure that the electrical connections are secure and in compliance with safety regulations.
4. Switch on: Turn on the power switch of the fan, typically located on the unit or its power cord. Check that the fan is running smoothly and generating sufficient airflow.
5. Monitor and maintain: Regularly inspect the fan for any signs of damage or malfunction. Clean or replace filters as necessary to maintain optimal performance.
