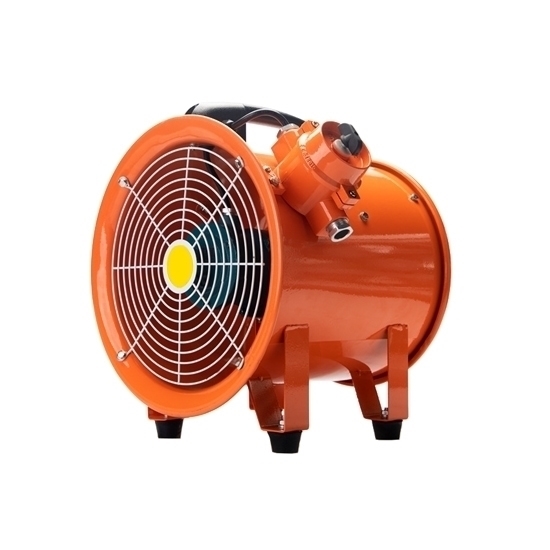

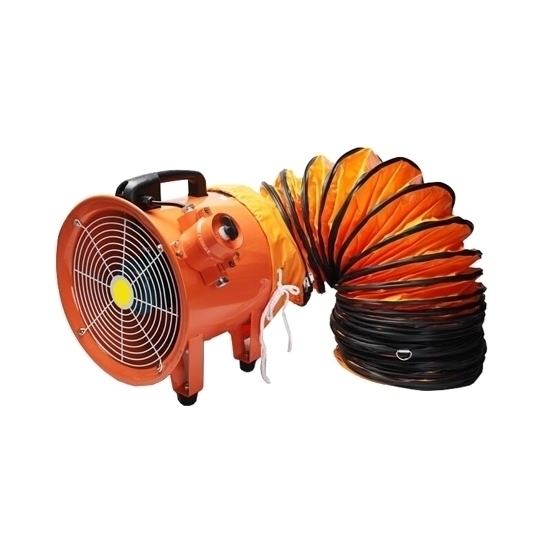

750W Explosion Proof Portable Exhaust Fan

0 reviews • Write a review

from

$831.79

Ex Tax: $831.79

Stock: In Stock
Model: RDDLZ-EPPEF-750W
Weight: 1.00
SKU: RDDLZ-EPPEF-750W

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

750W explosion proof portable exhaust fan is a specialized device designed to safely remove hazardous gases, fumes, or combustible materials from an area. This portable ventilation fan is constructed using durable materials and engineered with stringent safety measures to prevent the ignition of potentially explosive substances.

Specification

Model: RDDLZ-BSFT-500
Axis Power: 750W
Motor Power: 750W
Voltage (Optional): 220VAC, 380VAC, 110VAC
Ventilation Duct: 5m (Default)/ Contact Us for Other Sizes
Fan Diameter: 500mm (20 inch)
Impeller Diameter: 490mm (19 inch)
Air Volume: 6800~10000m3/h
Static Pressure: 185~200Pa
Rotating Speed: 1450r/min
Frequency: 50/60Hz
Explosion Proof Grade: ExdⅡBT4
Weight: 33kg

Detail

Tips: Difference between explosion proof and non explosion proof portable exhaust fan

The main difference between an explosion proof and a non explosion proof portable exhaust fan lies in their ability to operate safely in potentially hazardous environments. An explosion-proof exhaust fan is specifically designed to prevent the ignition of flammable gases, vapors, or dust particles present in the surrounding atmosphere. It is constructed using durable materials and features specialized seals and fittings to prevent sparks or hot surfaces from causing an explosion.

In contrast, a non explosion proof portable exhaust fan is not designed to withstand potentially explosive environments. It may lack the necessary safety features and robust construction required for such hazardous conditions. As a result, using a non-explosion-proof fan in an explosive atmosphere can pose a significant risk, as it could potentially ignite the flammable substances and cause an explosion.
