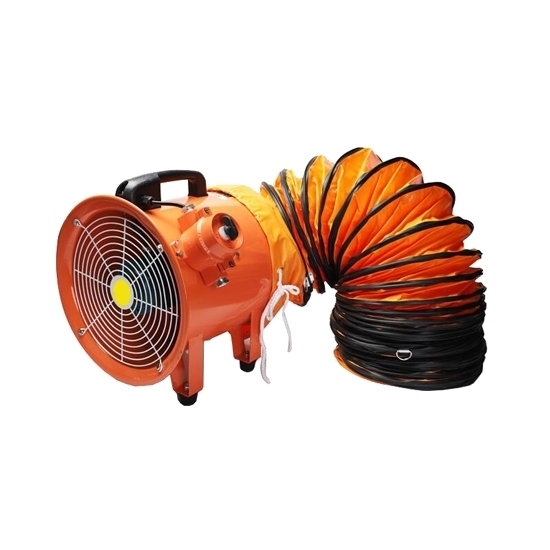

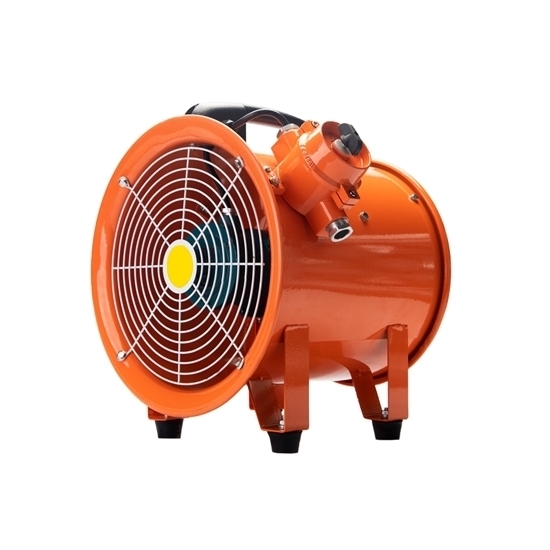

Industrial 250W explosion proof portable exhaust fan is a specially designed ventilation device that ensures safe operation in environments where explosive gases, vapors, or dust may be present. These explosion proof exhaust fans are built with robust construction and adhere to stringent safety standards to prevent the ignition of hazardous substances.

Specification

• Model: RDDLZ-BSFT-250
• Axis Power: 250W
• Motor Power: 250W
• Voltage (Optional): 220VAC, 380VAC, 110VAC
• Ventilation Duct: 5m (Default)/ Contact Us for Other Sizes
• Fan Diameter: 250mm (10 inch)
• Impeller Diameter: 240mm (9.5 inch)
• Air Volume: 2700~3300m3/h
• Static Pressure: 300~450Pa
• Rotating Speed: 2800r/min
• Frequency: 50/60Hz
• Explosion Proof Grade: ExdⅡBT4
• Weight: 28kg

Detail

Tips: What are the advantages of explosion proof exhaust fans?

Explosion proof portable exhaust fans offer several advantages in hazardous environments. First and foremost, these fans are specifically designed to prevent the ignition of flammable gases, vapors, or dust particles present in the surrounding atmosphere. They are built with robust construction materials and engineered to withstand internal explosions, ensuring safety for personnel and property.

These portable exhaust fans feature sealed motors and electrical components that are enclosed in explosion-proof housings, preventing sparks or arcs from escaping and causing an explosion. Additionally, they are designed to operate at lower temperatures, minimizing the risk of heat generation and ignition.

Furthermore, explosion proof exhaust fans facilitate proper ventilation by effectively removing hazardous fumes, vapors, or dust particles from the area. This helps maintain a safe and breathable environment for workers and reduces the accumulation of potentially combustible materials.
