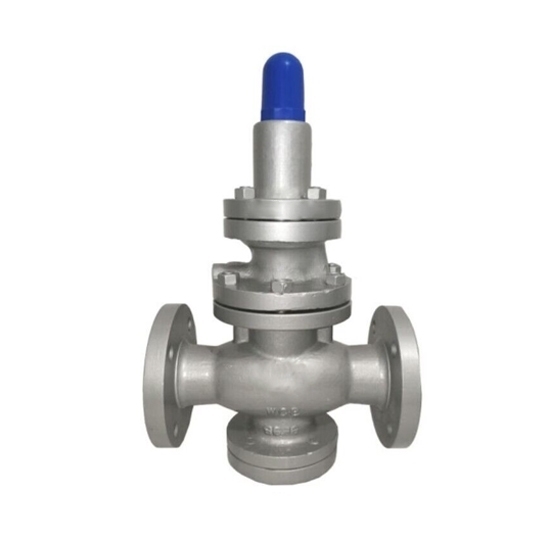

Buy a 1" PRV valve for steam systems online, it is available in nominal pressures of 1.6MPa, 2.5MPa and 4.0MPa. RDDLZ steam pressure regulator is designed to withstand high pressure and high temperature environments and is a robust and reliable solution.

Specification

• Model: RDDLZ-Y34H-DN25
• Body Material: Cast Steel
• Connection Form: Flange
• Nominal Diameter: DN25 (1")
• Nominal Pressure: 1.6MPa, 2.5MPa, 4.0MPa
• Working Temperature: <200C
• Applicable Medium: Water steam, boiler steam, high temperature steam, etc.
• Weight: 20kg

Features

• A 1 inch steam pressure regulator automatically adjusts the pressure of the steam to maintain a constant pressure in the system.
• The steam pressure reducing valve has a high degree of accuracy, ensuring that the pressure remains constant within a tight tolerance range.
• The steam pressure regulator is easy to install and can be retrofitted to existing steam systems with minimal disruption.
• RDDLZ steam pressure regulator is highly reliable and can operate for extended periods without requiring maintenance.

Dimension (Unit mm)

Installation

1. Filter
2. Pressure gauge
3. Steam pressure regulator
4. Globe valve
5. Safety valve
6. Bypass channel

Applications

Steam pressure regulators are widely used in power plants, chemical plants, and refineries, where they play a crucial role in ensuring the safe and efficient operation of boilers and other steam-powered equipment. In addition, steam pressure regulators are also used in the food and beverage industry, pharmaceuticals, and hospitals, where they are utilized to control the pressure of steam used for sterilization processes.

Tips: What is a steam pressure regulator?

A steam pressure regulator is a device used to control the pressure of steam in a steam system. It is typically used in industrial processes where steam is used as a source of energy to power machinery or as a means of heating. The regulator works by automatically adjusting the flow of steam to maintain a constant pressure within the system, even when there are fluctuations in the steam demand or supply. The device consists of a valve, which opens and closes to regulate the flow of steam, and a control mechanism, which senses changes in the system pressure and adjusts the valve accordingly. This helps to ensure that the steam system operates efficiently and safely, without causing damage to equipment or endangering personnel.
