Low cost 8 mfd ceiling fan capacitor for sale, tolerance ±5%, rated voltage 450V AC, inch 48 x 23 x 35mm, widely used in running range hood fan, ventilation fan, water pump, motor, generator and other machines.

Specification

• Model: RDDLZ-FC-CBB61-080
• Capacity: 8μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film

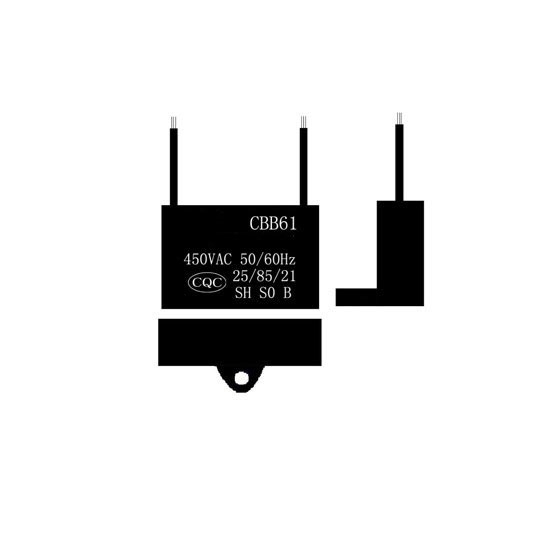

• Dimension: 48(W) x 23(L) x 35(H)mm
• Certificate: CE, CQC

8μF Ceiling Fan Capacitor Wiring Diagram

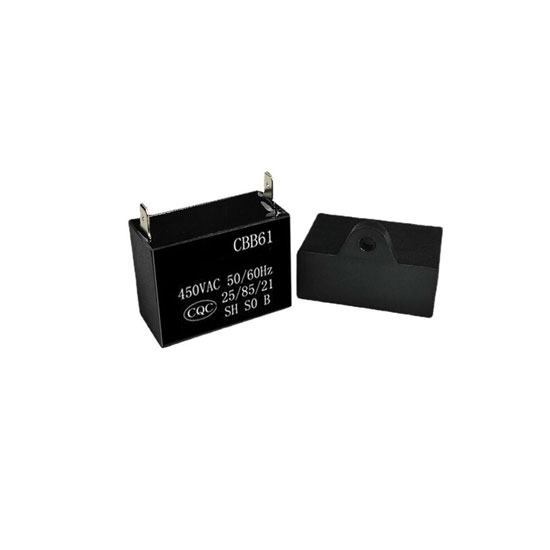

Ceiling fan capacitor details

Tips: What is metallized film capacitor

Metallized film capacitor is a layer of metal film vaporized on the surface of polyester film instead of metal foil as the electrode, because the thickness of metallized film layer is much smaller than the thickness of metal foil, so the volume after winding is much smaller than the volume of metal foil capacitor. The biggest advantage of metalized film capacitors is the "self-healing" feature. The so-called self-healing property means that if the film dielectric is defective at a certain point or has a short circuit due to overvoltage, the metallized layer at the breakdown point can melt and evaporate instantly under the arc and form a small metal-free zone, so that the two poles of the capacitor can be insulated from each other again and still continue to work, thus greatly improving the reliability of the capacitor.
