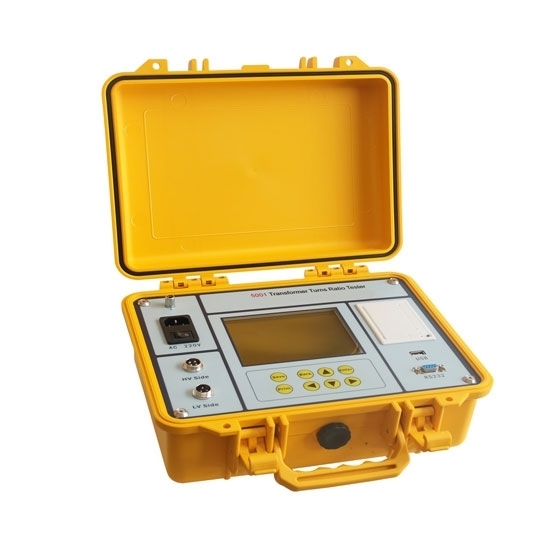

Transformer Turns Ratio Tester, 3 Phase

0 reviews • Write a review

from

$2,132.89

Ex Tax: $2,132.89

Stock: In Stock
Model: RDDLZ-TTR5001
Weight: 1.00
SKU: RDDLZ-TTR5001

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Professional three phase transformer turns ratio tester, with big LCD display, working power AC 220V, 110V can be customized. Voltage ratio test of transformer with high and low voltage inverter polarity protection function, short circuit protection.

Specification:

Model	RDDLZ-TTR5001
Range of Measurement	0.9~10000
Resolution Minimum	0.0001
Accuracy	0.2 Level
Output Voltage	160 V
Working Power	AC220V±10%
Supply Frequency	50/60Hz
Environment Temperature	-10℃～50℃
Environment Humidity	≤85%RH
Weight	10kg
Dimension	345295175mm

Features
1. The transformer turns have a wider testing range than the tester, and the highest measurable ratio reaches 10000.
2. The transformer turns ratio tester has a built-in three-phase digital power supply, which improves the stability of the test.
3. Small size, light weight, fast test speed, complete test phase in 10 seconds.
4. Z-shaped transformer test.
5 Transformer turns ratio tester. It has blind test ratio and group test function.
6. Clock and date display does not lose power, with data storage function. (You can choose to save data to U disk)
7. High and low voltage inverter polarity protection function, short circuit protection.
8. Thermal printer output function, fast speed and low noise.
9. Full-transmission large-screen LCD, which can be clearly displayed in sunlight.

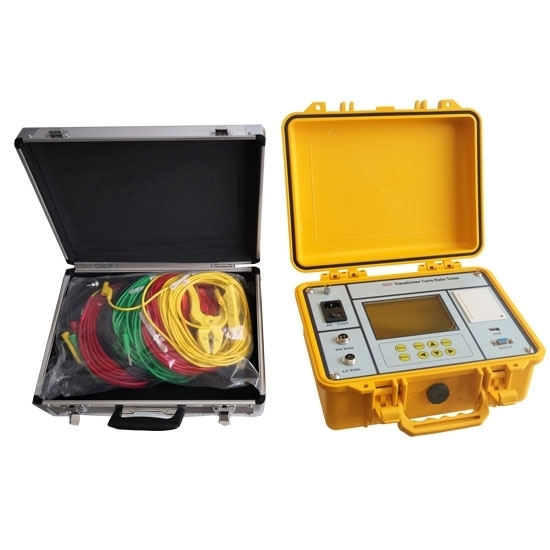

Packing List of Transformer Turns Ratio Tester

Number	Name	Quantity
1	Variable Ratio Tester	1
2	Power Cord	1
3	Test Line	1
4	Instructions	1
5	Inspection Report	1
6	Back-up Insurance Control	1

Tips: Precautions
1. During the measurement, do not touch the test object.
2. Wiring should be protected from contact. The transformer turns ratio test should be well grounded.
3. The working place of the voltage ratio test of transformer should be far away from strong electric field, strong magnetic field and high-frequency equipment. The smaller the interference from the power supply, the better. The lighting cable should be used. If the power supply interference is still large, it can be charged by the AC purification power line instrument. The capacity of the AC purification power supply can be greater than 200VA.
4. When the tester is working, if the liquid crystal display is disordered, no response to pressing all the keys, or the measured value is far from the actual value, please press the reset key, or turn off the power, and then restart the operation.
5. If there are no characters on the display, or the color is faint, please adjust the brightness potentiometer to the proper position.
6. When working in a dark place, the backlight can be turned on. To reduce the power consumption of the display, the backlight is not very bright.
7. The transformer turns ratio tester should be stored in a dry and ventilated place.
