Best quality AC ceiling fan capacitor for sale at low price, rated value 1.5 mfd, rated voltage 450V, 2 wires, rectangular shape, medium power, high insulation resistance, good self-healing and long service life.

Specification

• Model: RDDLZ-FC-CBB61-015
• Capacity: 1.5μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 37(W) x 13.5(L) x 24(H)mm
• Certificate: CE, CQC

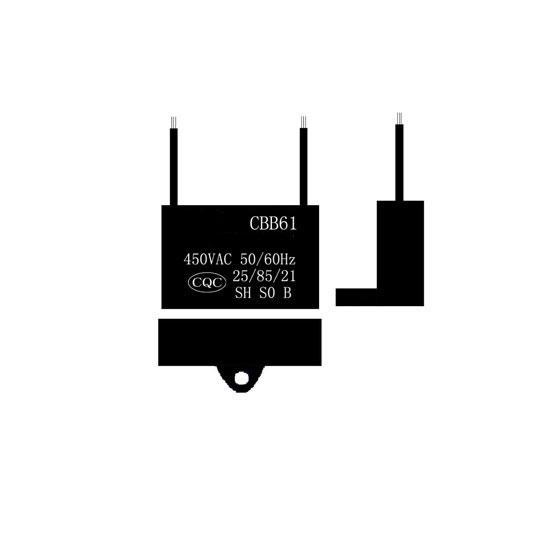

1.5μF Ceiling Fan Capacitor 2 Wire Connection Diagram

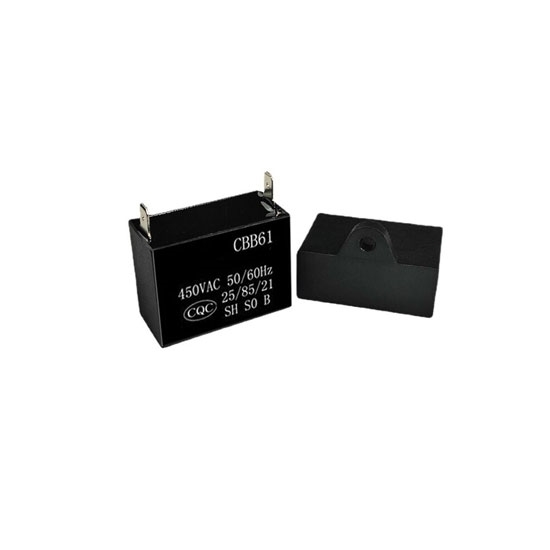

Ceiling Fan Capacitor Details

Tips: Are the "performance" of non-polarized and polarized capacitors the same?

The answer is different, the performance of capacitor means the requirement of use and the maximization of demand, if the performance in TV is the requirement of use, the maximization of demand is the requirement of use. If a metal oxide capacitor is used to filter the power supply in a TV set, and the capacitor capacity and withstand voltage are required to reach the filter. I am afraid that only a power supply can be installed in the housing. So as filtering can only use polarized capacitors, polarized capacitors are irreversible. That is to say, the positive terminal must be connected to the high potential end, and the negative terminal must be connected to the low potential end. Generally electrolytic capacitors are above 1 microfarad, to do coupling, decoupling, power filtering, etc. Most of the non-polarity capacitors are below 1 microfarad, which are involved in resonance, coupling, frequency selection, current limiting, etc. Of course, there are also high-capacity and high-voltage capacitors, which are mostly used in reactive power compensation, phase shifting of motors, inverter power shifting, etc.
