0.5μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$1.18

Ex Tax: $1.18

Stock: In Stock
Model: RDDLZ-FC-CBB61-005
Weight: 1.00
SKU: RDDLZ-FC-CBB61-005

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 Wire ceiling fan capacitor capacity value 0.5mfd, tolerance ±5%, rated voltage 450V AC, maximum allowable voltage does not exceed 1.1 times the rated voltage, maximum allowable current does not exceed 1.3 times the rated current.

Specification

Model: RDDLZ-FC-CBB61-005
Capacity: 0.5μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 32(W) x 10(L) x 18(H)mm
Certificate: CE, CQC

0.5μF Fan Capacitor 2 Wire Circuit Diagram

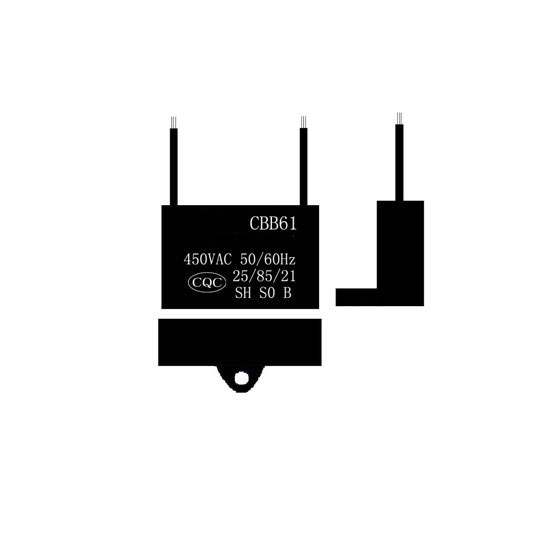

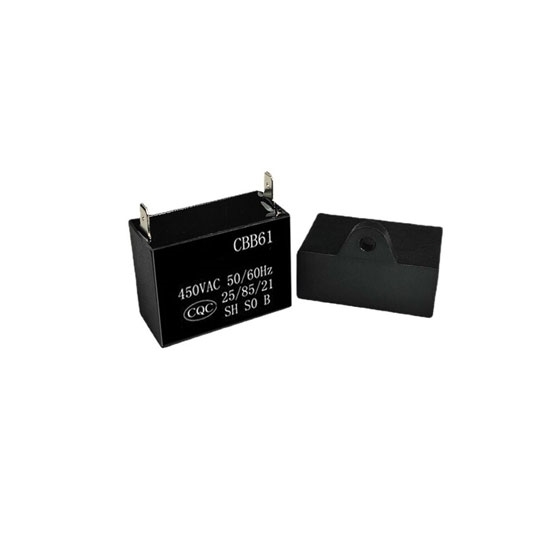

Ceiling Fan Capacitor Details

Tips: Do fan capacitors have polarity?

The capacitors are not positive or negative, the terminals are connected to the external metal layer, and the motor capacitor must be non-polarized. RDDLZ-CBB61 fan capacitors are widely used in ceiling fans, wall fans, standing fans, industrial fans, range hood fans, ventilating fans, pumps, motors, generators, etc.
