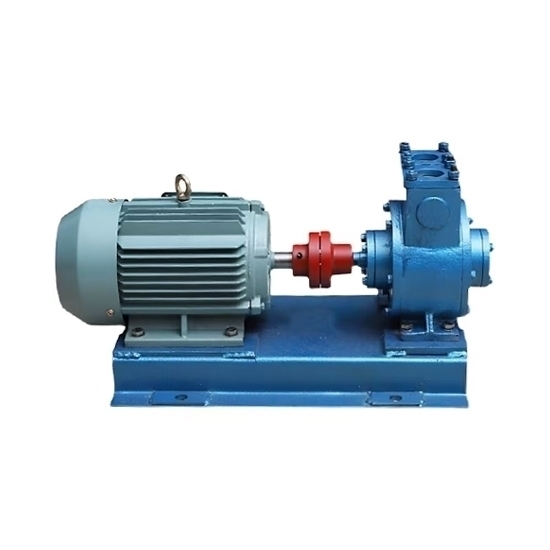

Sliding vane pump are known for their reliability, efficiency, and ability to handle various fluids, including liquids with high viscosity and those containing solids or abrasive particles. 10 hp vane type pump suitable for industrial applications such as fuel transfer, chemical processing, and lubrication systems.

Features:

• Slide pump has a strong self-priming capacity.
• Mechanical seal with special structure is safe, durable and reliable.
• Pump vane by centrifugal force, mechanical thrust, hydraulic pressure combined action, so that the pump has a unique high efficiency.

Specification:

• Model: RDDLZ-80YPB-60
• Voltage: 380V
• Power: 10 HP (7.5 kW)
• Capacity: 60 m³/h
• Pressure: 0.4 MPa
• Rotate Speed: 960 r/min
• Self-priming Height: 6.5m

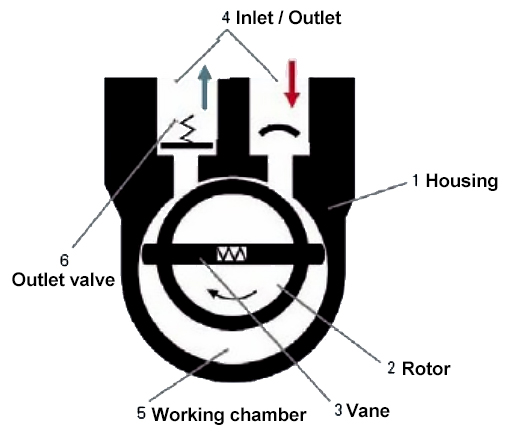

Structure:

Application:

Tips: Sliding Vane Pump Troubleshooting

• Inspect for Leakage. Check for any signs of leakage around the pump, including at the pump's inlet and outlet connections, as well as at the seal or gasket areas. Leakage can result from worn vanes, damaged seals, or loose connections. If there is leakage, replace worn vanes, damaged seals, or tighten loose connections.
• Check for Cavitation. Cavitation occurs when the pump's suction pressure is too low, causing the formation of vapor bubbles in the liquid being pumped. This can result in reduced pump performance and damage to the pump's vanes.
• Inspect Vanes. Examine the pump's vanes for wear or damage. Worn or damaged vanes can reduce the pump's efficiency and performance.
• Check for Vibration or Noise. Unusual vibration or noise can indicate misalignment, worn bearings, or other mechanical issues.
