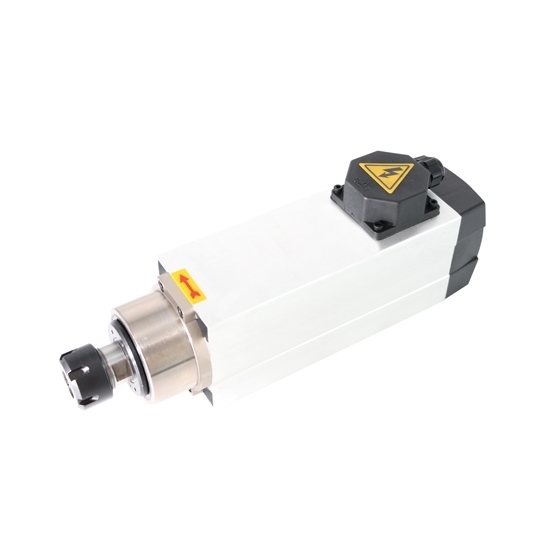

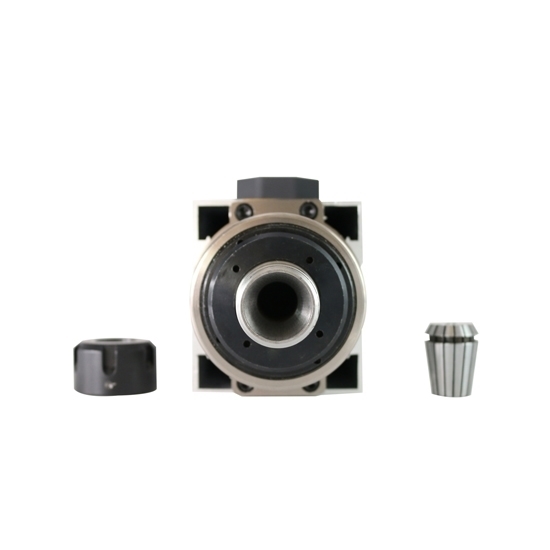

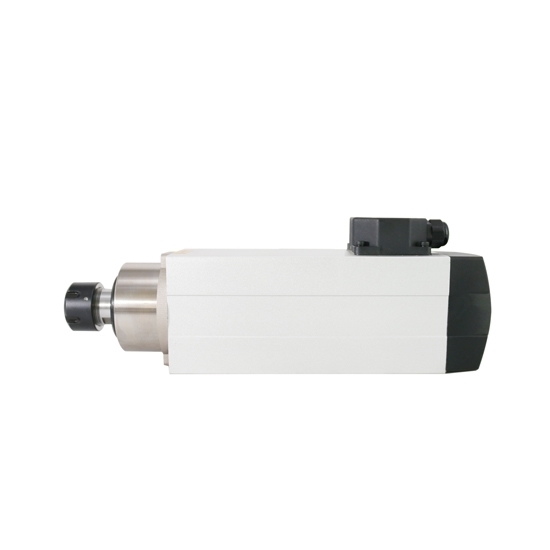

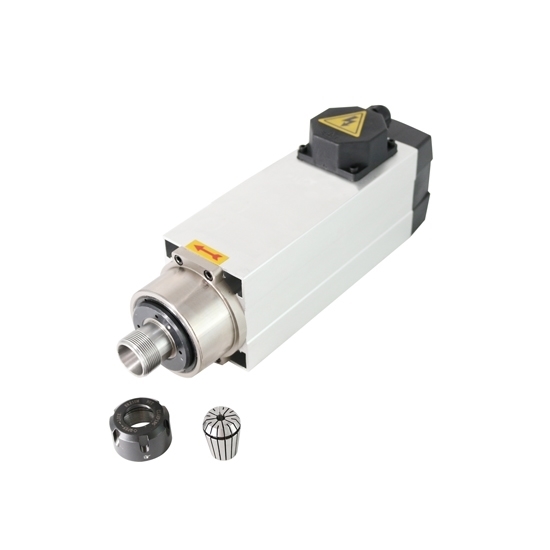

3.5 kW CNC spindle motor for sale at an economical price, 18000 rpm speed, 1.68 Nm torque, 300Hz frequency, 3 phase 380V AC operating voltage, ER25 (φ3.175 mm - φ16 mm) collet.

Feature

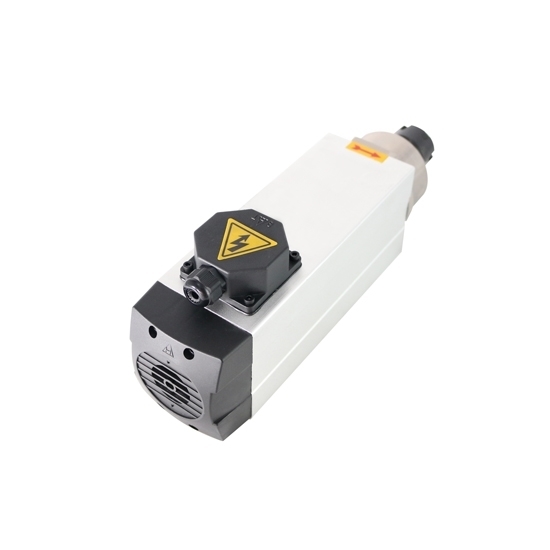

• Spindle motor with air cooling fan and ER25 collet ensures smooth running.
• Fast response, strong overload capacity, low noise, and high mechanical precision.
• High-quality 4 pcs bearings (7008Cx2 + 7002Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
• P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high-speed revolution.
• Lubricated with grease, which is resistant to 200 degrees high temperature.
• Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, and CNC router machines, and are used for high-speed profiling, drilling, cutting, engraving, and groove milling of wood, metal, plastics, foam, rubber, and other materials.

Note: Ensure that the spindle motor and VFD are compatible. The VFD’s specifications and parameter settings must align with the spindle motor’s nominal parameters. Incorrect settings can lead to spindle motor damage or burnout.

Specification

Details

Tips: How to Select a Right Spindle Motor?

The spindle motor is an important component of a woodworking engraving machine. The quality of the spindle motor directly affect the processing speed and accuracy of the engraving machine. How to select high-quality spindle motor is very important. RDDLZ summarizes the main points of woodworking engraving machine spindle selection for the reference of users:

1. If we pursue the efficiency of woodworking engraving machines, we should not only have a high speed, but also a large amount of knives. For example, when processing solid wood, we need a spindle motor with a power of more than 3kW.

2. Whether the spindle motor of a woodworking engraving machine adopts high-precision bearings or not, if it does not use high-precision bearings, the performance is that the spindle motor overheated after long-term high-speed rotation, which affects the service life of the spindle motor.

3. Whether the spindle of a woodworking engraving machine rotates at different speeds, especially at high speeds, the sound is uniform and harmonious.

4. Whether the radial force of the principal axis of the woodworking engraving machine is applied. The main reference is whether the material with a hard texture can be cut at high speed. Some spindle motors can only cut hard materials at very low speed, otherwise the performance of the motor will be seriously lost, which will affect the accuracy of the spindle after a period of time, or even cause faults.
