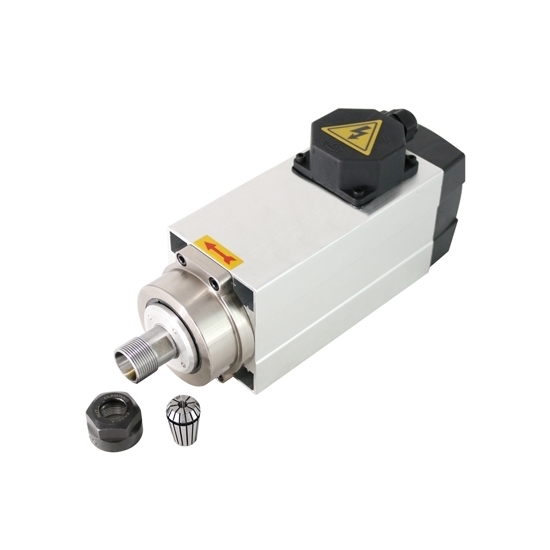

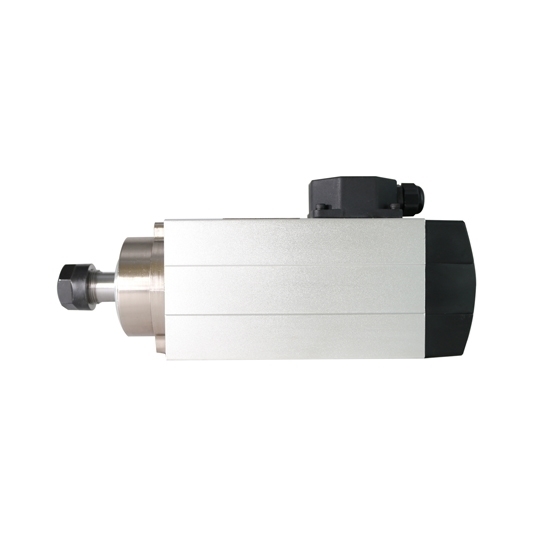

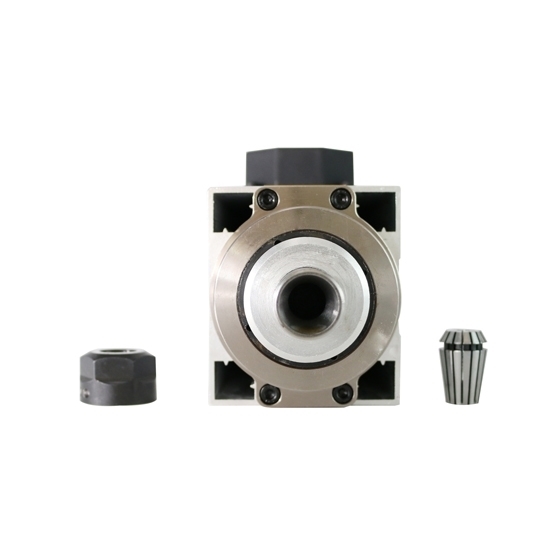

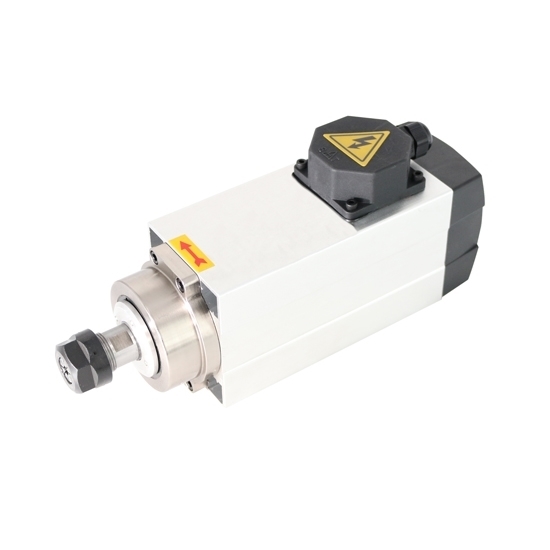

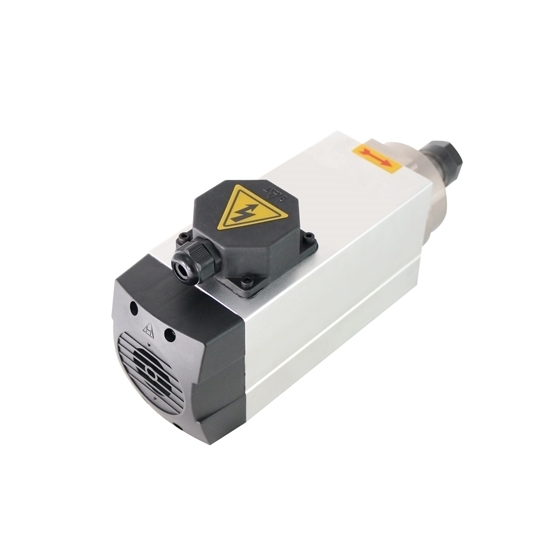

1500W CNC spindle motor for sale at affordable price, 18000 rpm speed, 0.91 Nm torque, 300Hz frequency, 3 phase 380V AC operating voltage, ER20 (φ3.175 mm - φ13 mm) collet.

Feature

• Spindle motor with air cooling fan and ER20 collet ensures smooth running.
• Fast response, strong overload capacity, low noise, and high mechanical precision.
• High-quality 4 pcs bearings (7005Cx2 + 7002Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
• P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high-speed revolution.
• Lubricated with grease, which is resistant to 200 degrees high temperature.
• Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, and CNC router machines, and are used for high-speed profiling, drilling, cutting, engraving, and groove milling of wood, metal, plastics, foam, rubber, and other materials.

Note: Ensure that the spindle motor and VFD are compatible. The VFD’s specifications and parameter settings must align with the spindle motor’s nominal parameters. Incorrect settings can lead to spindle motor damage or burnout.

Specification

Details

6 Tips for Spindle Motor Maintenance

1. Iron hook shall be commonly used to clean the leaking mouth at the lower end of the water drain cover at the front end of the spindle motor in use, so as to prevent debris from blocking the leaking pipe.
2. The air into the spindle motor should be dry and clean.
3. Remove the CNC spindle from the machine tool and use the air pipe to blow out the residual water in the motorized spindle cooling cavity.
4. Long-term use of the spindle motor should be oil seal, and start. In addition to the use of gasoline to wash the surface of anti-rust oil, should do the following work: A. Pass oil mist for 3-5 minutes. Turn the rotating shaft with your hands and feel no retardation. B. Use a megohm meter to detect the insulation to the ground, usually ≥10 megohm. C. First run at 1/3 rated speed for 1 hour when the power is switched on. When there is no abnormal phenomenon, run at 1/2 rated speed for 1 hour. D. Precision steel ball is adopted to maintain the turning accuracy of the spindle in high-speed grinding.
5. The CNC spindle motor can be lubricated with high-speed grease and oil mist according to different rotating speeds.
6. The temperature rise caused by the high-speed rotation of the spindle can be eliminated by using the coolant circulating system flow.
