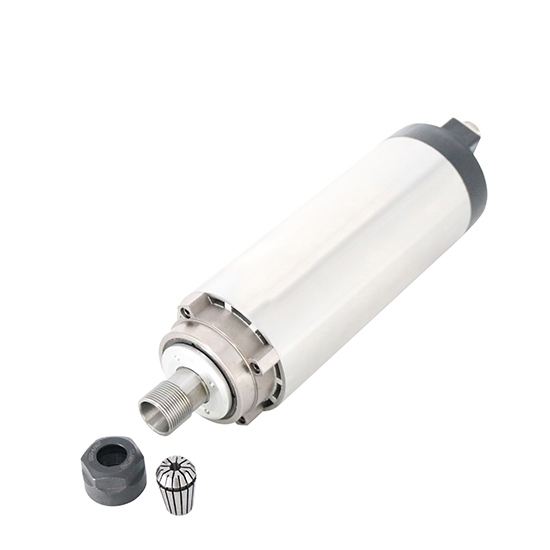

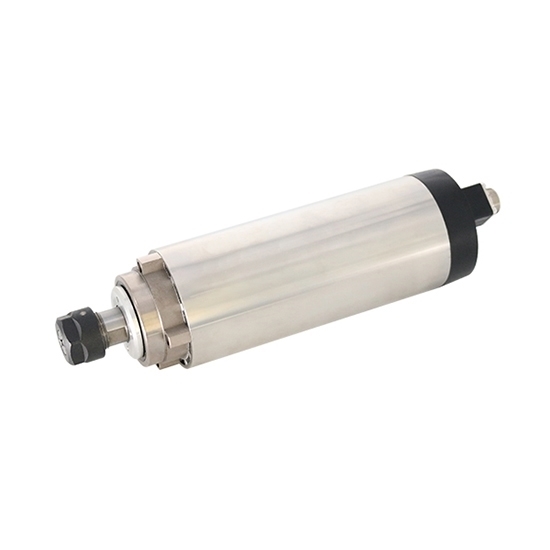

2.2 kW CNC spindle motor for sale at a competitive price, 24000 rpm speed, 0.85 Nm torque, 400Hz frequency, 3 phase 380V AC operating voltage, ER20 (φ3.175 mm - φ13 mm) collet.

Feature

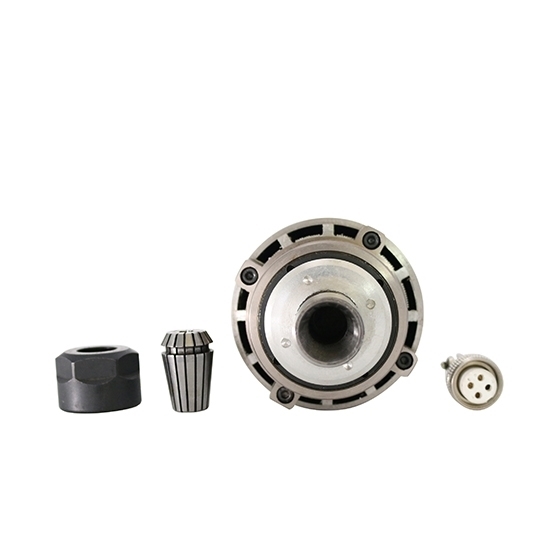

• Spindle motor with air cooling fan and ER20 collet ensures smooth running.
• Fast response, strong overload capacity, low noise, and high mechanical precision.
• High quality 4 pcs bearings (7005Cx2 + 7002Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
• P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high-speed revolution.
• Lubricated with grease, which is resistant to 200 degrees high temperature.
• Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, and CNC router machines, and are used for high-speed profiling, drilling, cutting, engraving and groove milling of wood, metal, plastics, foam, rubber, and other materials.

Note: Ensure that the spindle motor and VFD are compatible. The VFD’s specifications and parameter settings must align with the spindle motor’s nominal parameters. Incorrect settings can lead to spindle motor damage or burnout.

Specification

Details

Tips: Servo Motor vs. Spindle Motor in CNC Machine

The main requirements of CNC machine tools for servo motors are:

1. Mechanical characteristics: The speed drop and rigidity of the servo motor are required to be small.
2. Requirements for rapid response: This is more stringent in contour processing, especially for high-speed processing of objects with large curvatures.
3. Speed ​​adjustment range: This can make CNC machine tools suitable for various cutting tools and processing materials, suitable for various processing techniques.
4. There is a certain output torque and a certain overload torque is required. The nature of the mechanical load of the machine tool feed is mainly to overcome the friction of the table and the resistance of cutting, so it is mainly the nature of "constant torque".

The main requirements for high-speed electric spindle motors are:

1. Sufficient output power. The spindle load nature of CNC machine tools is similar to "constant power". That is, when the spindle motor speed of the machine tool is high, the output torque is small; when the spindle speed is low, the output torque is large. That is, the requirement of the spindle drive device must have the nature of "constant power".
2. Speed ​​adjustment range: In order to ensure that the CNC machine tool is suitable for various cutting tools and processing materials; it is suitable for various processing techniques, and the spindle motor is required to have a certain speed adjustment range. But the requirement for the spindle is lower than the feed.
3. Speed ​​accuracy: Generally, the static difference is required to be less than 5%, and the higher requirement is less than 1%.
4. Fast: The spindle drive device is sometimes used for positioning function, which requires it to also have a certain speed.
