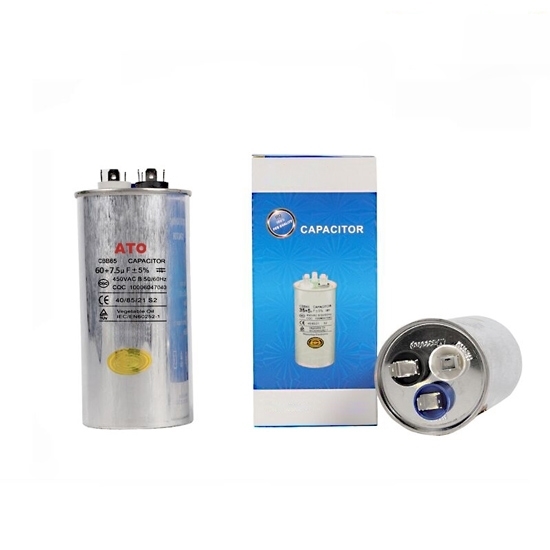

60/7.5 mfd air conditioner capacitor for sale online. Low-price HVAC capacitor has a dual run capacitor, which is helpful for motors starting and running. 450V high voltage capacitor provides the initial jolt of electricity your air conditioner’s motors need to run.

Features and applications

60+7.5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. RDDLZ air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: RDDLZ-ACC-008
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

60/7.5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 125mm)

Tips: How to choose air conditioner capacitors?

1. When choosing an air conditioning capacitor, you should first observe the appearance of the capacitor.
2. The second is to check the capacitor capacity. Capacitor capacity will generally decay slowly with the use of time or environmental changes, and when the capacitor capacity is reduced to about 20% will be difficult to start the air conditioning phenomenon, so we should be able to withstand the range of electrical capacity in the air conditioner to choose a relatively large capacitor, so as to ensure that the use of time can be longer.
3. Finally, when buying an air conditioning capacitor, be sure to choose a regular seller.
