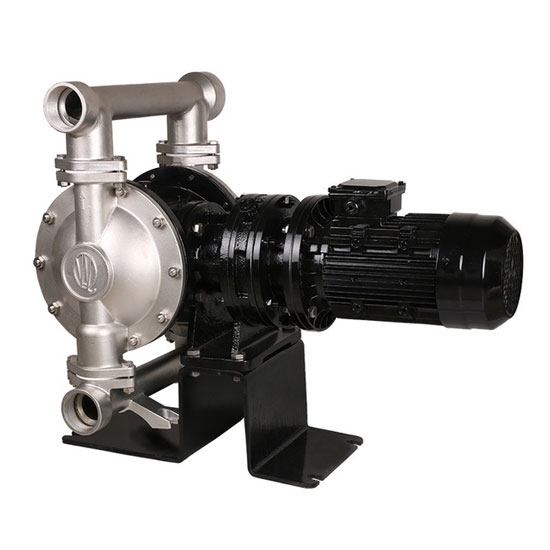

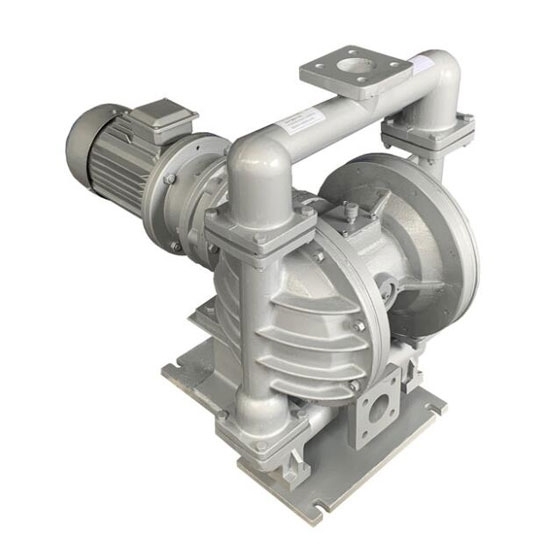

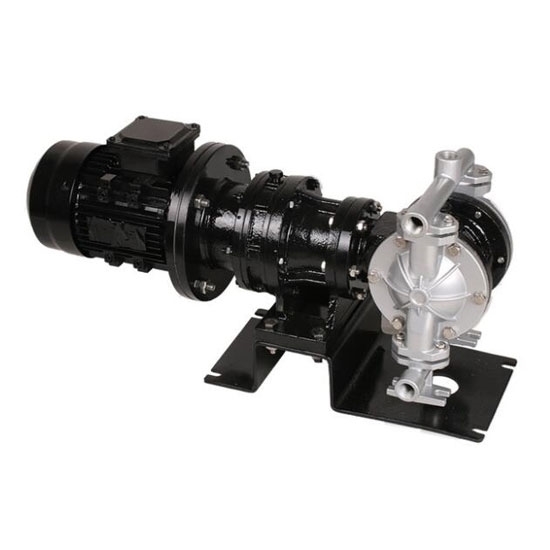

4" Electric Diaphragm Pump, 61.5GPM, 3kW
from
$7,823.99
Ex Tax: $7,823.99
- Stock: In Stock
- Model: RDDLZ-EODD-100
- Weight: 1.00
- SKU: RDDLZ-EODD-100

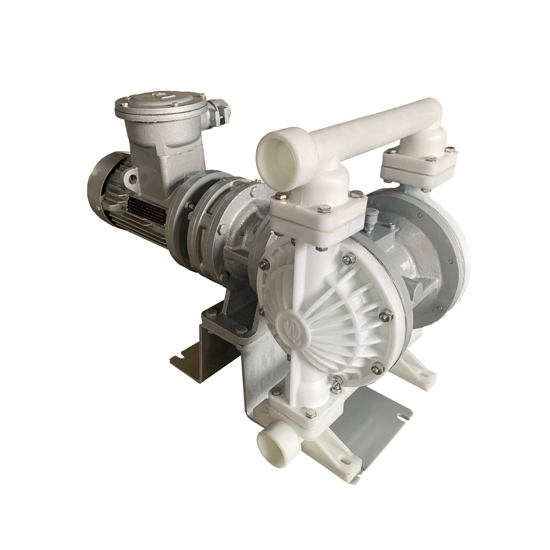

Industrial 4 inch EODD pump powered by an electric motor for delivering high viscosity fluids, slurry, Acid alkaline liquid, toxic liquid and so on, with max. flow 14 GPM, working temperature up to 100℃, high performance and high efficiency.
Specification
| Model | RDDLZ-DBY3-100 |
| Max. Flow | 61.5 GPM (14 m3/h) |
| Fluid Inlet Size | 4 inch (DN100) |
| Fluid Outlet Size | 4 inch (DN100) |
| Connection Type (Optional) | NPT, BSPT, ANSI Flanged, DIN Flanged |
| Suction Lift | 15 ft. (4.5m) |
| Head | 100 ft. (30m) |
| Outlet Pressure | 3 kgf/cm2 |
| Motor Speed | 1450 rpm |
| Motor Voltage | 3-Phase 380V |
| Motor Power | 3kW |
| Reducer Speed Ratio | 1:17 |
| Working Temperature | Polypropylene: 70℃ Aluminum Aloy: 90℃ Stainless Steel: 100℃ Cast Iron: 90℃ |
| Body Material (Optional) | Polypropylene, Aluminum Alloy, Stainless Steel, Cast Iron |
| Diaphragm Material | Butyronitrile (Default)/ Teflon (Customizable) |
| Weight | 210kg, 210kg, 225kg, 250kg |

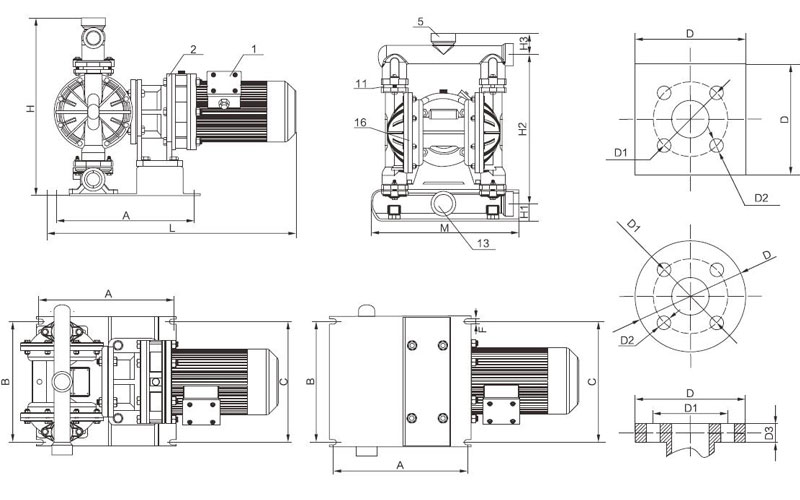

Dimensions (Unit: mm)
| Model | A | B | C | F | L | H | H1 | H2 | H3 | M | Thread Type (NPT, BSPT) | Flange Type (ANSI, DIN) | |||
| D | D1 | D2 | D3 | ||||||||||||
| RDDLZ-DBY3-100 | 470 | 330 | 215 | 16 | 930 | 755 | 112 | 580 | 63 | 600 | 4 | 210 | 170 | 4 - φ16 | 18 |

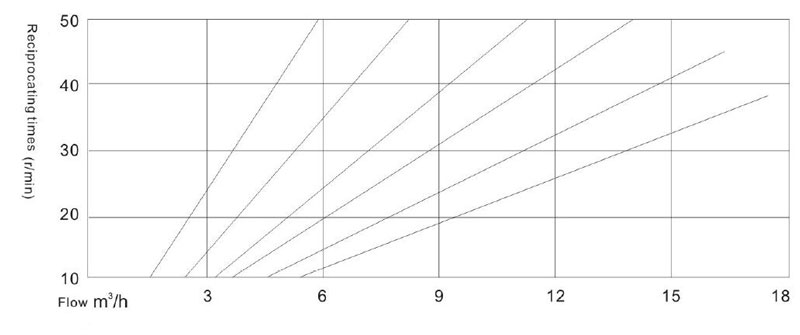

Flow Diagram
Details

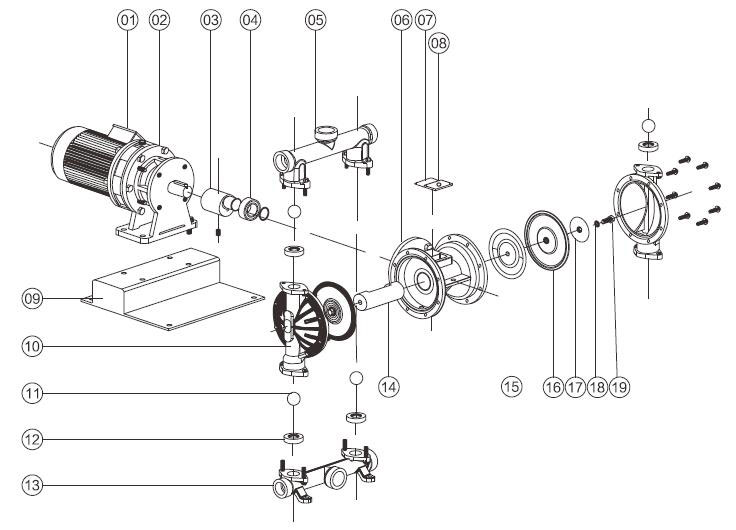

| 1 | motor | 8 | Grease Nipple | 14 | Piston Shaft |
| 2 | Reducer | 9 | Footing | 15 | Inner Press Plate |
| 3 | Wobber | 10 | Pump Body | 16 | Diaphragm |
| 4 | Bearing | 11 | Sealing Ball | 17 | Outer Press Plate |
| 5 | Outlet Pipe | 12 | Sealing seat | 18 | Sealing Gasket |
| 6 | Iternediate | 13 | Inlet Pipe | 19 | Press Plate Screw |
| 7 | Cover Plate |
Tips: The functions of electric diaphragm pump components
- Air valve: The plastic or metal valve shell is fixed on the pump center body by four screws.
- Piston: The aluminum cylinder is enclosed in an air valve to control the air flow.
- Cavitation: Due to the reduced or lack of fluid supply at the pump inlet, the pump discharge is lower than the rated volume. In fact, the liquid chamber is not filled with fluid before discharge.
- Static discharge head: the vertical distance (in meters) from the center line of the pump to the free delivery point.
- Inlet pressure: The inlet is measured in Bar, including the specific gravity and flow rate of the fluid.
- Specific gravity: the ratio of fluid weight to water weight at 4 degrees. The specific gravity of 4° water is 1:0, and the static suction lift is the vertical distance from the liquid level to the center line of the pump. The pump should be above the liquid level.
- Vapor pressure: The pressure of vapor generated by all liquids on its free surface. In any pump operating system, the operating pressure cannot be lower than the vapor pressure, and the formed vapor will be partially or completely cut off into the pump fluid.
- Viscosity: Due to the internal friction of the fluid, the nature of viscosity makes the fluid flow resistance.
- Water hammer: The higher inlet forms a static pressure head which acts on the pump to generate internal pressure.
