Miniature Tension And Compression Load Cell 3kg/20kg/100kg To 500kg

0 reviews • Write a review

from

$172.49

Ex Tax: $172.49

Stock: In Stock
Model: RDDLZ-LC-TC02
Weight: 1.00
SKU: RDDLZ-LC-TC02

Available Options

Capacity

With Transmitter

Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

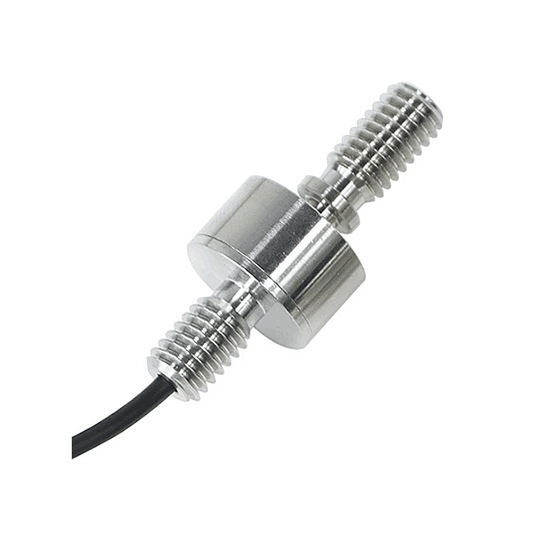

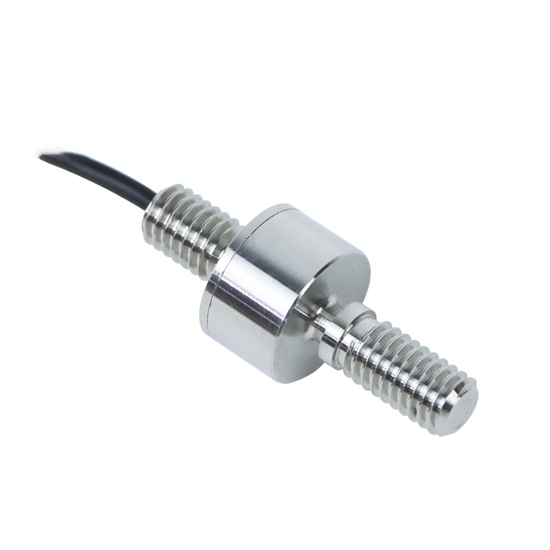

Miniature tension and compression load cells have capacity range from 1kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg to 500kg. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCC-DYMH-106
Weight	0.1kg
Capacity Range *	1kg~500kg
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)

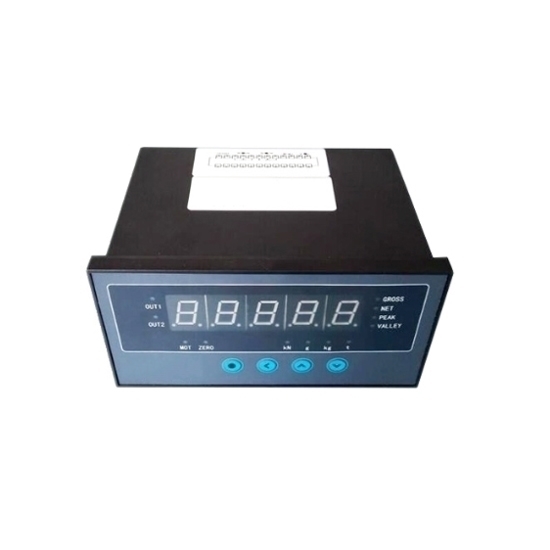

Matched Display Controller	RDDLZ-DDC5-CHB (Click it to the controller page)
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.0±20%mV/V (Low range variations may differ)
Creep	±0.1%F.S/30min
Zero Output	±5%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Temperature Compensation Range	-10℃~+60℃
Operating Temperature	-20℃~+80℃
Input Impedance	350±30Ω
Output Impedance	350±5Ω
Insulation Resistance	≥2000MΩ
Safety Overload	120%F.S
Overload Limit	200%F.S
Bridge Voltage (excitation voltage)	DC 5-15V
Material	Stainless steel
Protection Class	IP66
Cable Length	2m (Φ2mm)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High-Quality Material: Made from stainless steel, resistant to corrosion, ensuring durability and long service life.
Compact Design: Small size with high measurement accuracy, ideal for tight spaces and precise force measurement.
Versatile Use: Suitable for tension and compression measurements, widely used in automotive assembly, medical testing, and robotics.
Durability: Wear-resistant, high-temperature resistant, and abrasion-resistant for long-term reliability in harsh environments.
Sealed Structure: Waterproof and oil-resistant, equipped with a sealed structure to prevent contamination and ensure consistent performance.
Easy Installation: Simple to install with tight sealing and secure connections, providing stable operation.
Specialized Optic Welding: Equipped with specialized optical welding to meet IP67 waterproof standards for demanding environments.
