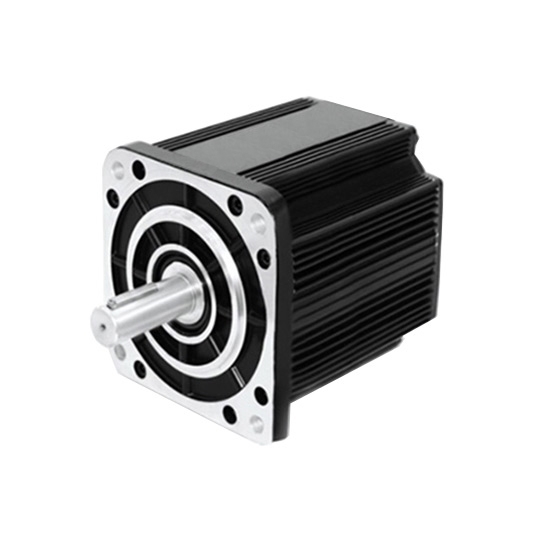

3-phase 2.5kW 48V/72V/96V BLDC motor has a rated speed of 2000 rpm and no-load speed up to 2400 rpm, 12 Nm holding torque, IP65 for body, directly sale from manufacturer. Voltage, Brake, Matching Controller, Matching Gearbox options are available for your specific needs. In general, it would be more cost-effective to buy a complete set of our BLDC motors.

Basic Specifications

• Model: RDDLZ-D180BLD2500 (Click to see the motor drawings)
• Matched Controller Model: RDDLZ-DMKBL
• Rated Power: 2500W
• Rated Voltage: 48V DC / 72V DC / 96V DC (Optional)
• Rated Current: 62A at 48V, 41A at 72V, 31A at 96V
• Phase: 3 phase
• Holding Torque: 12 Nm
• Peak Torque: 30 Nm
• Rated Speed: 2000 rpm
• No-load Speed: 2400 rpm
• Square Flange Size: 180 mm
• Weight: 18.5 kg

Technical Parameters

• Working Efficiency: 85%
• Number of Poles: 4 pairs of poles (8 poles)
• Brake Apparatus Voltage: 24V DC/ 48V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
• Brake Length: 40-50mm
• Insulation Grade: F
• Protection Grade: IP65
• Working Temperature: 10℃~+40℃
• Humidity: ≤90% (no condensation)
• Motor Lead Length: 30 cm, if you buy a kit (motor+controller), an extra 1 meter of wire shall be provided.
• Certificate: CE, RoHS, ISO/TS16949

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of RDDLZ BLDC Motors can be customized.

Features

1. High performance and low consumption
   2.5kW brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
2. Wide application range and good control effect

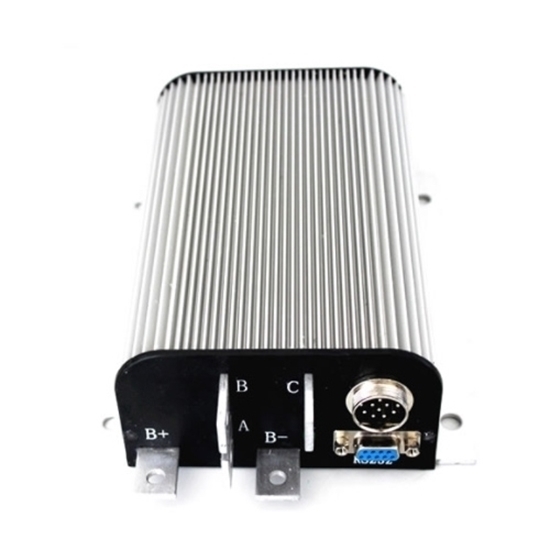

   BLDC motor works with a matching controller (RDDLZ-DMKBL) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
3. Wide control speed torque range

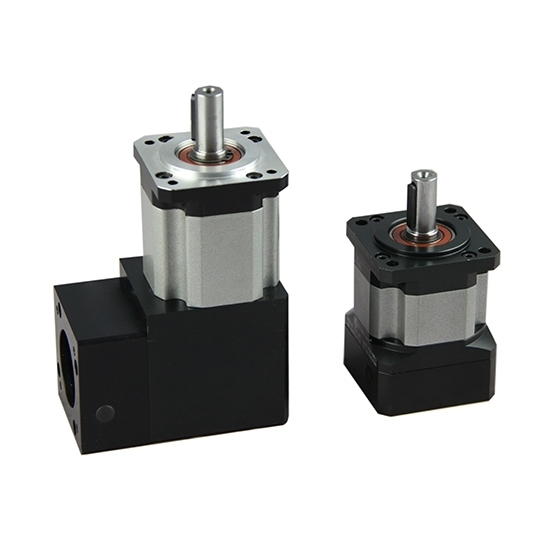

   Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
4. Low noise and smooth operation
   Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
5. Good protection performance and continuous duty (24/7)
   2500W BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

Power Wire

Feedback Wire

Dimension (Unit: mm)

Details

Tips: What is a Brushless DC (BLDC) Motor?

BLDC motors are brushless dc electric motors without brush and commutator (or slip ring), also known as no commutator motor. Brushless DC motor is a permanent magnet synchronous motor, rather than a real DC motor. Different from brush DC motor, brushless DC motor does not use the mechanical brush device, using square wave controlled permanent magnet synchronous motor and Hall sensor to replace the carbon brush commutator. Compared with the performance of the traditional DC motor, brushless DC motor has a great advantages, is today's best speed motor.
