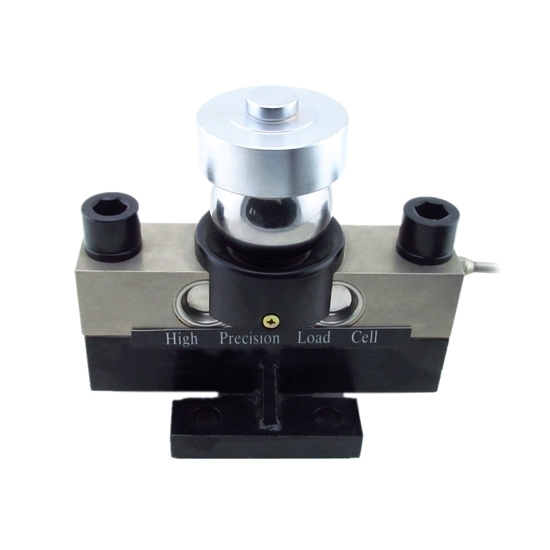

Shear Beam Load Cell For Rail Weighbridge/Truck Scale, 10/20/30/50 Ton

0 reviews • Write a review

from

$489.42

Ex Tax: $489.42

Stock: In Stock
Model: RDDLZ-LC-SB01
Weight: 1.00
SKU: RDDLZ-LC-SB01

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Shear beam load cells have capacity range from 10 ton, 20 ton, 30 ton to 50 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCB-TJH-6A
Shipping weight	18.5~33.1kg
Capacity range *	10 ton~50 ton

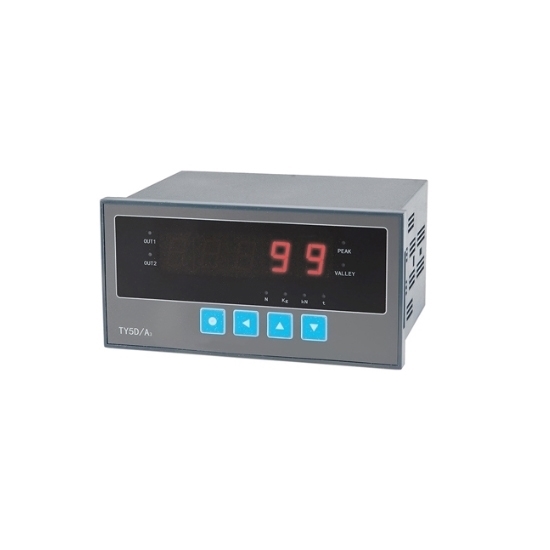

Matched display controller	RDDLZ-TY5DA3 (Click it to the controller page)

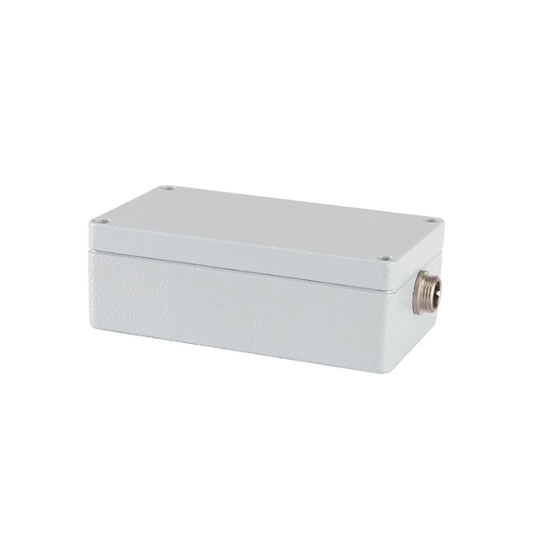

Matched transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.02~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero output	±1%F.S
Temperature effect on zero	±0.02%F.S/10℃
Temperature effect on output	±0.02%F.S/10℃
Operating temperature	-20℃~+65℃
Input impedance	750±15Ω
Output impedance	700±5Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection class	IP67
Cable length	3m (＜5 ton), 6m (≥5 ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High Capacity & Anti-Offset Load: Designed to handle high forces and resist offset loads, ensuring accurate weight measurement in challenging conditions.
Automatic Reset & Self-Aligning: Features a combination of load buttons with automatic reset and self-aligning functions for consistent performance.
High Precision & Low Power: Provides accurate measurements with minimal power consumption, making it ideal for long-term use.
Sealed & Durable: Fully sealed to protect against harsh environments, offering resistance to moisture and dust.
Wide Application: Perfect for use in railway scales, truck scales, and other types of electronic weighing systems.

Dimension (unit: mm)

Application

Tips: How does the Shear Beam Load Cell work?

The Shear Beam Load Cell works by using the shear force generated when weight is applied. It has an internal strain gauge that deforms under load, causing a change in resistance. This change is then converted into an electrical signal that corresponds to the amount of weight or force being applied.
