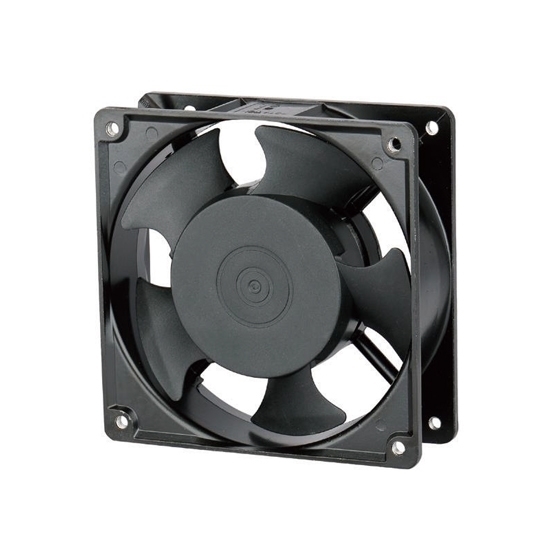

AC Axial Fan, 120mm X 120mm X 38mm, 110V/ 220V/ 380V

0 reviews • Write a review

from

$59.29

Ex Tax: $59.29

Stock: In Stock
Model: RDDLZ-AAF-12038
Weight: 1.00
SKU: RDDLZ-AAF-12038

Available Options

Short Description

Rated Voltage

Bearing Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

120mm x 120mm x 38mm AC axial flow fan working at 110V/220V/380V rated voltage, is commonly used for cooling electronic equipment, ventilating spaces, and HVAC systems due to their efficiency in moving large volumes of air.

Specification

Model	RDDLZ-GX12038HSL			RDDLZ-GX12038HBL
Bearing Type	Sleeve Bearing			Ball Bearing
Number of Impellers	5			5
Frequency	50/ 60Hz			50/ 60Hz
Rated Voltage	110/ 120V AC	220/ 240V AC	380V AC	110/ 120V AC	220/ 240V AC	380V AC
Current	0.17A	0.12A	0.09A	0.17A	0.12A	0.09A
Power	18W			18W
Speed	2700rpm			2700rpm
Noise Level	43dBA			43dBA
Air Flow	138cfm			138cfm
Dimension	120x120x38mm			120x120x38mm

Dimension (Unit: mm)

Air Flow

Tips: What is an AC axial fan?

AC axial fans are devices designed to move air or gas parallel to the axis of the fan blades. They are commonly used for ventilation, cooling, and exhaust applications in various industries, including HVAC, automotive, and electronics. These fans operate on alternating current (AC), consisting of a motor, impeller, and housing. The motor drives the impeller, which consists of several blades that create an airflow when rotated. AC axial fans are known for their high airflow rates, efficiency, and reliability. They come in various sizes and configurations to suit different requirements, such as cooling electronic enclosures, ventilating spaces, and removing heat from machinery. Key features include durability, low noise levels, and easy installation and maintenance. Their ability to handle high volumes of air makes them ideal for applications requiring effective and consistent airflow.
