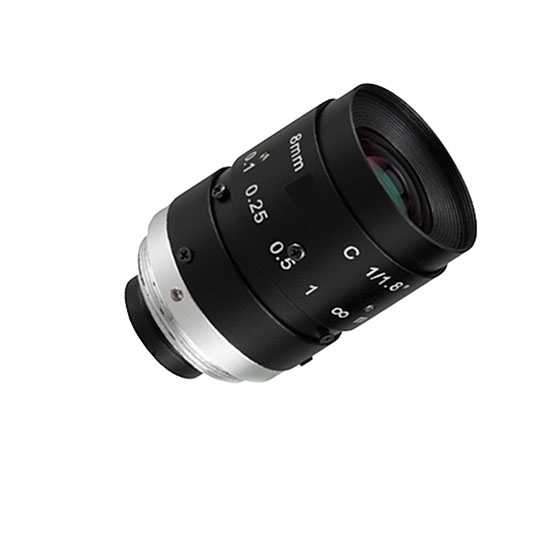

Industrial Camera Lens, Fixed Focus, 1/1.8", 8mm, F/1.4, C-Mount

0 reviews • Write a review

from

$328.57

Ex Tax: $328.57

Stock: In Stock
Model: RDDLZ-LEN-0814
Weight: 1.00
SKU: RDDLZ-LEN-0814

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Indutrial camera fixed focus lens with focal length 8.0mm and aperture F/1.4 is high cost-performance, to help users obtain realistic and clear images. It is ideal choice for various industrial detection, intelligent transportation and machine vision.

Lens Specification

Model		LEM-0814-MP5
Sensor		1/1.8 CCD/CMOS
Image Format (HxV, D)		7.18×5.38, 8.933
Format/Image Size		1/1.8"
Focal Length/EFL		8.0mm
F-number/Aperture		F/1.4
Field of View (FOV)	/	1/1.8"	2/3"
	Diagonal (D)	56°	50.8°
	Horizontal (H)	46°	41.5°
	Vertical (V)	35.5°	31.7°
Back Focal Length		9.03mm
Lens Effective Diameter	Front	∅16.84mm
	Back	∅9.0mm
Lens Construction		10-9
TV Distortion		< -0.29%
Resolution		5 Mega Pixel
Relative Illumination		> 74.9%
Iris Type		Manual
Max Chief Ray Angle		14.01°
MOD		0.1m
Mount		C-Mount / 1-32UNF
TTL		53.37mm
Dimension (∅×L)		∅29×38mm

Industrial Camera Lens Dimension

Tips: Differences of industrial camera lens interfaces
There are three international standards for industrial camera lenses: F mount, C mount and CS mount.
F mount is a general-purpose interface, generally applicable to the lens with a focal length of more than 25mm. When the focal length of the lens is less than 25mm, the size of the lens is not large, and a C-mount or CS-mount is generally used.
The difference between the C and CS mount is the distance from the indutrial lens and the camera contact surface (datum plane) to the camera focal plane (position of the industrial camera CCD photoelectric sensor), that is, the flange distance is different. And the flange distance of the C mount is 17.5mm. The CS interface flange is 12.5mm.
A 5mm C/CS adapter ring can be used in conjunction with the C-mount industrial lens and the CS-mount indutrial camera. The CS–mount lens cannot be used with the C-mount camera.
